NET-UBQ-SW-USW-PRO-MAX-48-POE

The Ubiquiti USW-Pro-MAX-48-PoE is a high-performance 48-port managed switch designed to meet the needs of large, power-intensive networks.
Equipped with 32 PoE+ ports and a robust 720W power budget, it seamlessly powers a range of devices like access points, IP cameras, and VoIP phones.
In addition, it offers 4 10G SFP+ fibre uplinks for ultra-fast data transfer and greater network scalability.
With advanced Layer 3 switching, a smart cooling system for quiet operation, and easy management through the UniFi Controller, the USW-Pro-MAX-48-PoE is perfect for enterprises looking for powerful, flexible, and reliable networking with extensive PoE support.

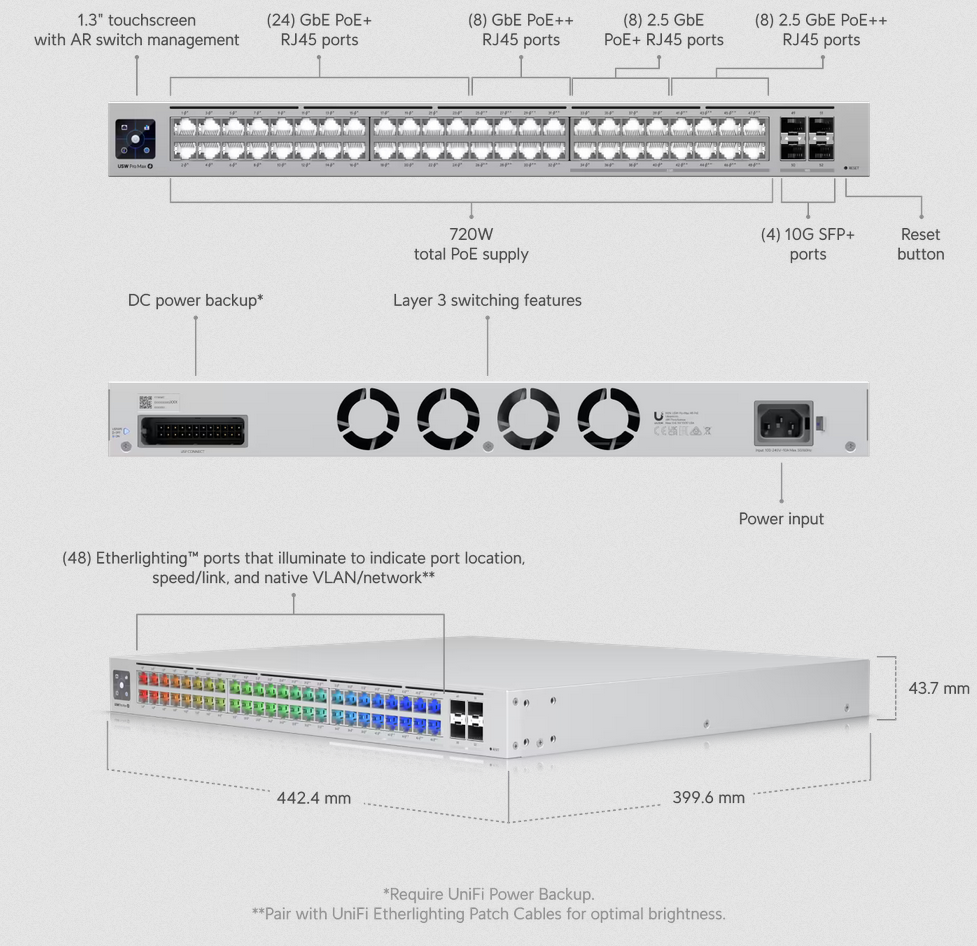

Mechanical
Dimensions		442.4 x 400 x 44 mm
Weight		Without mounting brackets: 6.2 kg With mounting brackets: 6.3 kg
Enclosure material		SGCC steel
Hardware
Management interface		Ethernet In-Band
Networking interface		(32) GbE RJ45 ports (16) 1/2.5 GbE RJ45 ports (4) 10G SFP+ ports
PoE interface		(32) PoE/PoE+ (Pins 1, 2+; 3, 6-) (16) 60W PoE++ (Pair A 1, 2+; 3, 6-) (Pair B 4, 5+; 7, 8-)
Total non-blocking throughput		112 Gbps
Switching capacity		224 Gbps
Forwarding rate		166.656 Mpps
Power method		(1) Universal input, 100—240V AC, 50/60 Hz >br>(1) USP-RPS DC input
Power supply		AC/DC, internal, 820W
Supported voltage range		100—240V AC
Max. power consumption		100W (Excluding PoE output)
Total available PoE		720W
Max. PoE wattage per port by PSE		PoE: 15.4W PoE+: 30W PoE++: 60W
Voltage range PoE mode		PoE: 44-57V PoE+: 50-57V
LCM display		(1) 1.3" touchscreen
Button		Factory reset
Ambient operating temperature		-5 to 40° C
Ambient operating humidity		10 to 90% noncondensing
Certifications		CE, FCC, IC
Switching Features
Layer 2 features		IGMP snooping STP / RSTP with priorities and port-level disable Port isolation Storm control Voice VLAN Port mirroring LACP port aggregation Multicast / broadcast rate limiting MAC address blocking Flow control 802.1X control Jumbo frames Proprietary loop protection DHCP snooping / guarding Egress rate limit LLDP-MED Port restricted by MAC Device isolation with ACLs
Layer 3 features		DHCP for locally-managed networks DHCP relay Inter-VLAN routing between networks on same switch Static routing between local networks Network isolation with ACLs
Etherlighting™
Ethernet		Locating Speed/link Native VLAN/network
SFP+		Locating Speed/link Native VLAN/network
LEDs
System		Status
RPS		Status
Application Requirements
UniFi Network		Version 8.0.24 and later
