NET-UBQ-SW-USW-PRO-MAX-48

The Ubiquiti USW-Pro-MAX-48 is a high-performance 48-port managed switch designed for businesses seeking superior speed, scalability, and advanced networking features.

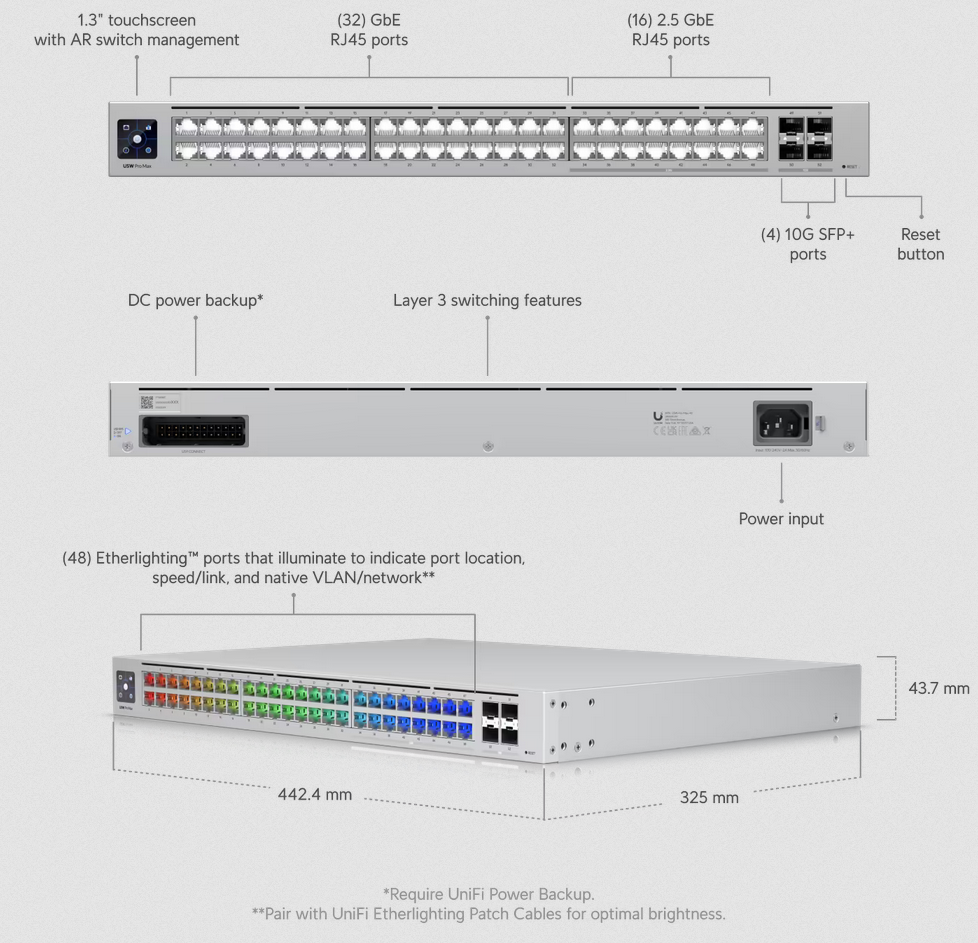

With 48 Gigabit Ethernet ports and 4 10G SFP+ ports for ultra-fast fibre uplinks, it delivers lightning-fast connectivity across large-scale networks.
Built with advanced Layer 3 switching capabilities, the USW-Pro-MAX-48 provides robust routing and traffic management for enterprise-level applications.
Its intelligent cooling system ensures quiet operation, making it suitable for office and data centre environments.
Managed through the intuitive UniFi Controller, this switch offers real-time monitoring, simplified configuration, and seamless integration into existing network infrastructure.
The USW-Pro-MAX-48 is the perfect solution for businesses looking to future-proof their network with reliability and high-speed performance.

Mechanical
Dimensions		442 x 325 x 44 mm
Weight		Without mounting brackets: 4.2 kg With mounting brackets: 4.3 kg
Enclosure material		SGCC steel
Hardware
Management interface		Ethernet In-Band
Networking interface		(16) GbE RJ45 ports (8) 1/2.5 GbE RJ45 ports (2) 10G SFP+ ports
Total non-blocking throughput		56 Gbps
Switching capacity		112 Gbps
Forwarding rate		88.328 Mpps
Power method		(1) Universal input, 100—240V AC, 50/60 Hz (1) USP-RPS DC Input
Power supply		AC/DC, internal, 50W
Supported voltage range		100—240V AC
Max. power consumption		50W
LCM display		(1) 1.3" touchscreen
Button		Factory reset
Ambient operating temperature		-5 to 40° C
Ambient operating humidity		10 to 90% noncondensing
Certifications		CE, FCC, IC
Switching Features
Layer 2 features		IGMP snooping STP / RSTP with priorities and port-level disable Port isolation Storm control Voice VLAN Port mirroring LACP port aggregation Multicast / broadcast rate limiting MAC address blocking Flow control 802.1X control Jumbo frames Proprietary loop protection DHCP snooping / guarding Egress rate limit LLDP-MED Port restricted by MAC Device isolation with ACLs
Layer 3 features		DHCP for locally-managed networks DHCP relay Inter-VLAN routing between networks on same switch Static routing between local networks Network isolation with ACLs
Etherlighting™
Ethernet		Locating Speed/link Native VLAN/network
SFP+		Locating Speed/link Native VLAN/network
LEDs
System		Status
RPS		Status
Application Requirements
UniFi Network		Version 8.0.24 and later
