NET-UBQ-SW-USW-PRO-MAX-24

The Ubiquiti USW-Pro-MAX-24 is a professional-grade 24-port managed switch designed for enterprise networks that require top-tier speed and performance.
Featuring 24 Gigabit Ethernet ports and 4 10G SFP+ ports for ultra-fast fibre uplinks, this Layer 3 switch is perfect for high-demand environments.
With advanced routing and switching capabilities, it ensures seamless data flow across your network.
The smart cooling system ensures near-silent operation, making it ideal for both office and data centre use.
Managed through the intuitive UniFi Controller, the USW-Pro-MAX-24 simplifies network management, offering real-time monitoring and easy configuration, making it the ideal choice for businesses looking to expand their network infrastructure.

Mechanical
Dimensions		442 x 325 x 44 mm
Weight		Without mounting brackets: 4.2 kg With mounting brackets: 4.3 kg
Enclosure material		SGCC steel
Hardware
Management interface		Ethernet In-Band

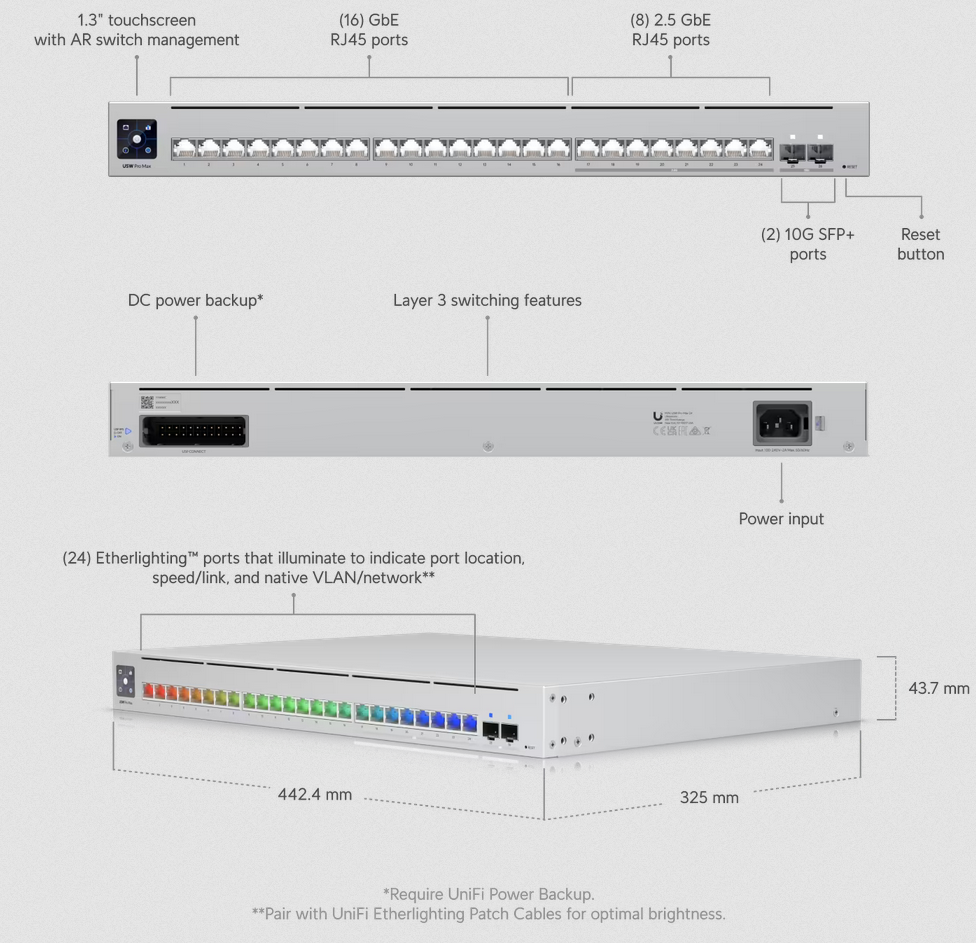

Networking interface		(16) GbE RJ45 ports (8) 1/2.5 GbE RJ45 ports (2) 10G SFP+ ports
Total non-blocking throughput		56 Gbps
Switching capacity		112 Gbps
Forwarding rate		88.328 Mpps
Power method		(1) Universal input, 100—240V AC, 50/60 Hz (1) USP-RPS DC Input
Power supply		AC/DC, internal, 50W
Supported voltage range		100—240V AC
Max. power consumption		50W
LCM display		(1) 1.3" touchscreen
Button		Factory reset
Ambient operating temperature		-5 to 40° C
Ambient operating humidity		10 to 90% noncondensing
Certifications		CE, FCC, IC
Switching Features
Layer 2 features		IGMP snooping STP / RSTP with priorities and port-level disable Port isolation Storm control Voice VLAN Port mirroring LACP port aggregation Multicast / broadcast rate limiting MAC address blocking Flow control 802.1X control Jumbo frames Proprietary loop protection DHCP snooping / guarding Egress rate limit LLDP-MED Port restricted by MAC Device isolation with ACLs
Layer 3 features		DHCP for locally-managed networks DHCP relay Inter-VLAN routing between networks on same switch Static routing between local networks Network isolation with ACLs
Etherlighting™
Ethernet		Locating Speed/link Native VLAN/network
SFP+		Locating Speed/link Native VLAN/network
LEDs
System		Status
RPS		Status
Application Requirements
UniFi Network		Version 8.0.24 and later
