NET-UBQ-SW-USW-PRO-48-POE
NET-UBQ-SW-USW-PRO-48-POE
NET-UBQ-SW-USW-PRO-48-POE
Ubiquiti UniFi Pro 48 Port PoE Switch
Local Support in Australia and New Zealand
Quick Delivery Wide stock availability to respond to most requirements.
Our specialist support is available!

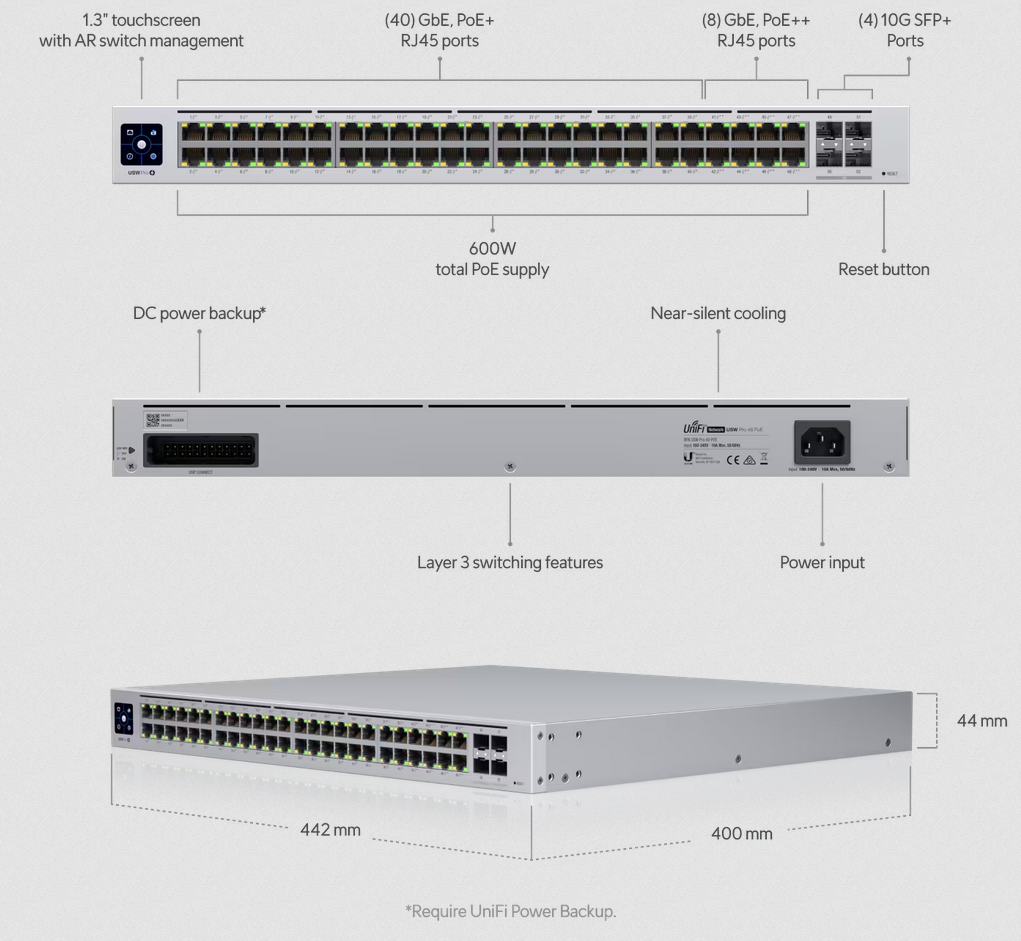

The Ubiquiti USW-Pro-48-PoE is a powerhouse 48-port managed switch, engineered for demanding business networks that require advanced Power over Ethernet (PoE) capabilities.
Equipped with 40 PoE+ ports and a total power budget of 600W, it can effortlessly power multiple access points, IP cameras, and VoIP phones.
In addition, its 4 10G SFP+ ports provide high-speed fibre uplinks, ensuring blazing-fast data transfer and network flexibility.
Designed with a smart cooling system featuring near-silent fans, it’s perfect for noise-sensitive environments.
The use of the UniFi Controller further allows for seamless network management, monitoring, and optimisation.
Choose the USW-Pro-48-PoE for unmatched power, scalability, and top-tier performance in your network infrastructure.
| Mechanical | ||
| Dimensions | 442 x 400 x 44 mm | |
| Weight | Without mounting brackets: 6.2 kg
With mounting brackets: 6.3 kg | |
| Enclosure material | SGCC steel | |
| Hardware | ||
| Management interface | Ethernet In-Band | |
| Networking interface | (48) GbE RJ45 ports
(4) 1/10G SFP+ ports |
|
| PoE interface | (40) PoE/PoE+ (Pins 1, 2+; 3, 6-)
(8) 60W PoE++; PoE/PoE+ (Pins 1, 2+; 3, 6-) / PoE++ (Pair A 1, 2+; 3, 6-) (Pair B 4, 5+; 7, 8-) |
|
| Total non-blocking throughput | 88 Gbps | |
| Switching capacity | 176 Gbps | |
| Forwarding rate | 130.944 Mpps | |
| Power method | (1) Universal input, 100—240V AC, 50/60 Hz
(1) USP-RPS DC input, 52V DC, 11.54A; 11.5V DC, 5.22A |
|
| Power supply | AC/DC, internal, 660W | |
| Supported voltage range | 100—240V AC | |
| Max. power consumption | 60W (Excluding PoE output) | |
| Total available PoE | 600W | |
| Max. PoE wattage per port by PSE | PoE+: 32W
PoE++: 64W |
|
| Voltage range PoE mode | PoE: 44-57V
PoE+: 50-57V |
|
| ESD/EMP protection | Air: ± 16kV, contact: ± 12kV | |
| LCM display | (1) 1.3" touchscreen | |
| Button | Factory reset | |
| Shock and vibration | ETSI300-019-1.4 Standard | |
| Ambient operating temperature | -5 to 40° C | |
| Ambient operating humidity | 10 to 90% noncondensing | |
| Certifications | CE, FCC, IC | |
| Switching Features | ||
| Layer 2 features | IGMP snooping
STP / RSTP with priorities and port-level disable Port isolation Storm control Voice VLAN Port mirroring LACP port aggregation Multicast / broadcast rate limiting MAC address blocking Flow control 802.1X control Jumbo frames Proprietary loop protection DHCP snooping / guarding Egress rate limit LLDP-MED Port restricted by MAC Device isolation with ACLs |
|
| Layer 3 features | DHCP for locally-managed networks
DHCP relay Inter-VLAN routing between networks on same switch Static routing between local networks Network isolation with ACLs |
|
| LEDs | ||
| System | Status | |
| Ethernet | PoE
Speed/link/activity |
|
| SFP+ | Link/activity | |
| RPS | Status | |
| Application Requirements | ||
| UniFi Network | Version 5.10.5 and later |
| Section Name | Description |
|---|---|
| Mpn | USW-Pro-48-POE |
| Brand | Ubiquiti |
