NET-UBQ-SW-USW-PRO-48

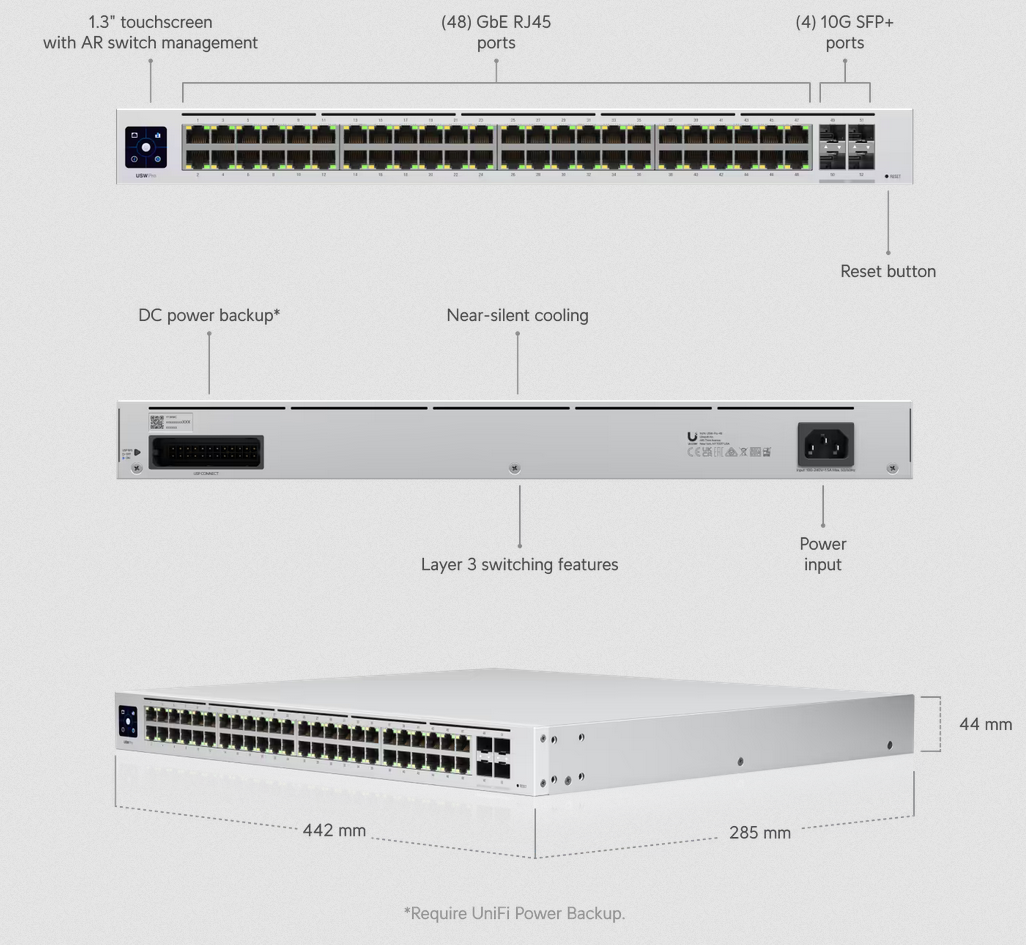

The Ubiquiti USW-Pro-48 is a high-performance 48-port managed switch designed for high-demand business networks, delivering powerful performance and advanced features.
It boasts 48 Gigabit Ethernet ports and 4 10G SFP+ ports for high-speed fibre uplinks, ensuring maximum data throughput and flexibility.
The Pro model features Layer 3 switching capabilities and a smart cooling system with near-silent fans, making it suitable for both office and data centre environments.
Seamlessly integrate and manage your network using the UniFi Controller, allowing for intuitive monitoring, configuration, and optimisation.
Choose the USW-Pro-48 for unmatched scalability, reliability, and professional-grade networking.

Mechanical
Dimensions		442 x 285 x 44 mm
Weight		Without mounting brackets: 4 kg With mounting brackets: 4.1 kg
Enclosure material		SGCC steel
Hardware
Management interface		Ethernet In-Band
Networking interface		(48) GbE RJ45 ports (4) 1/10G SFP+ ports
Total non-blocking throughput		88 Gbps
Switching capacity		176 Gbps
Forwarding rate		130.944 Mpps
Power method		(1) Universal input, 100—240V AC, 50/60 Hz (1) USP-RPS DC Input 11.5V DC, 5.22A
Power supply		AC/DC, internal, 60W
Supported voltage range		100—240V AC
Max. power consumption		60W
ESD/EMP protection		Air: ± 16kV, contact: ± 12kV
LCM display		(1) 1.3" touchscreen
Button		Factory reset
Shock and vibration		ETSI300-019-1.4 Standard
Ambient operating temperature		-5 to 45° C
Ambient operating humidity		10 to 90% noncondensing
Certifications		CE, FCC, IC
Switching Features
Layer 2 features		IGMP snooping STP / RSTP with priorities and port-level disable Port isolation Storm control Voice VLAN Port mirroring LACP port aggregation Multicast / broadcast rate limiting MAC address blocking Flow control 802.1X control Jumbo frames Proprietary loop protection DHCP snooping / guarding Egress rate limit LLDP-MED Port restricted by MAC Device isolation with ACLs
Layer 3 features		DHCP for locally-managed networks DHCP relay Inter-VLAN routing between networks on same switch Static routing between local networks Network isolation with ACLs
LEDs
System		Status
Ethernet		Speed/link/activity
SFP+		Speed/link/activity
RPS		Status
Application Requirements
UniFi Network		Version 5.12.11 and later
