NET-UBQ-SW-USW-PRO-24

The Ubiquiti USW-Pro-24 is a high-performance 24-port managed switch designed for professional-grade networks requiring advanced features and reliability.
Equipped with 24 Gigabit Ethernet ports and 2 10G SFP+ ports, it offers lightning-fast data transfer and versatile uplink options.
The Pro model includes a powerful, smart cooling system with near-silent fans, making it suitable for noise-sensitive environments.
With advanced Layer 3 switching capabilities and seamless integration with the UniFi Controller, managing and optimising your network has never been easier.
Upgrade to the USW-Pro-24 for exceptional network performance, flexibility, and scalability tailored for demanding business applications.

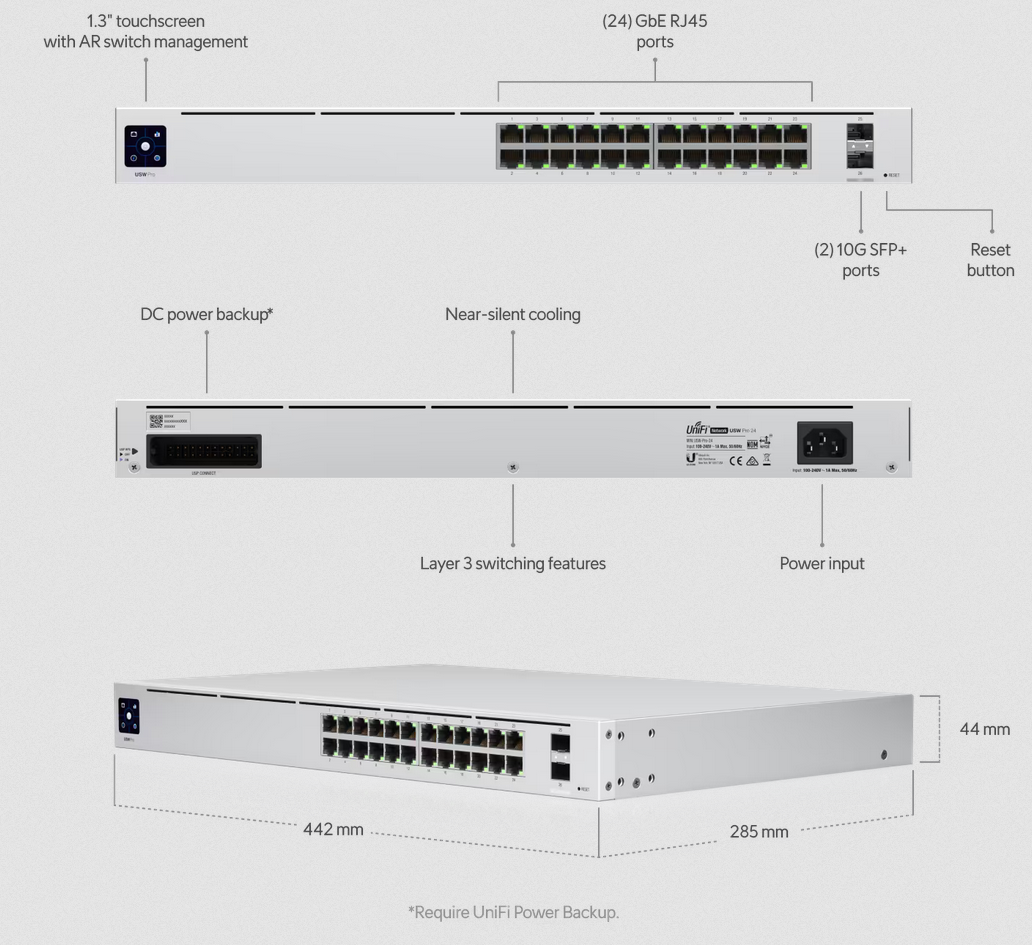

Mechanical
Dimensions		442 x 285 x 44 mm
Weight		Without mounting brackets: 3.5 kg With mounting brackets: 3.6 kg
Enclosure material		SGCC steel
Hardware
Management interface		Ethernet In-Band
Networking interface		(24) GbE RJ45 ports (2) 1/10G SFP+ ports
Total non-blocking throughput		44 Gbps
Switching capacity		88 Gbps
Forwarding rate		65.472 Mpps
Power method		(1) Universal input, 100—240V AC, 50/60 Hz (1) USP-RPS DC Input 11.5V DC, 2.61A
Power supply		AC/DC, internal, 36W
Supported voltage range		100—240V AC
Max. power consumption		30W
ESD/EMP protection		Air: ± 16kV, contact: ± 12kV
LCM display		(1) 1.3" touchscreen
Button		Factory reset
Shock and vibration		ETSI300-019-1.4 Standard
Ambient operating temperature		-5 to 45° C
Ambient operating humidity		10 to 90% noncondensing
Certifications		CE, FCC, IC
Switching Features
Layer 2 features		IGMP snooping STP / RSTP with priorities and port-level disable Port isolation Storm control Voice VLAN Port mirroring LACP port aggregation Multicast / broadcast rate limiting MAC address blocking Flow control 802.1X control Jumbo frames Proprietary loop protection DHCP snooping / guarding Egress rate limit LLDP-MED Port restricted by MAC Device isolation with ACLs
Layer 3 features		DHCP for locally-managed networks DHCP relay Inter-VLAN routing between networks on same switch Static routing between local networks Network isolation with ACLs
LEDs
System		Status
Ethernet		Speed/link/activity
SFP+		Speed/link/activity
RPS		Status
Application Requirements
UniFi Network		Version 5.12.11 and later
