NET-UBQ-SW-USW-48-POE

The Ubiquiti USW-48-PoE is a powerful 48-port managed switch with Power over Ethernet (PoE) capabilities, tailored for businesses and advanced network setups.
Featuring 32 PoE+ ports with a total power budget of 195W, it effortlessly powers access points, IP cameras, VoIP phones, and other PoE devices.
The switch also includes 4 high-speed SFP ports for fibre uplink connectivity, ensuring maximum network flexibility.
Its fanless, sleek design enables quiet operation, while the UniFi Controller provides intuitive management, monitoring, and configuration.
Elevate your network with the USW-48-PoE, offering unparalleled scalability, reliability, and seamless integration.

Mechanical
Dimensions		442 x 285 x 44 mm
Weight		Without mounting brackets: 4.5 kg With mounting brackets: 4.6 kg
Enclosure material		SGCC steel
Hardware
Management interface		Ethernet In-Band

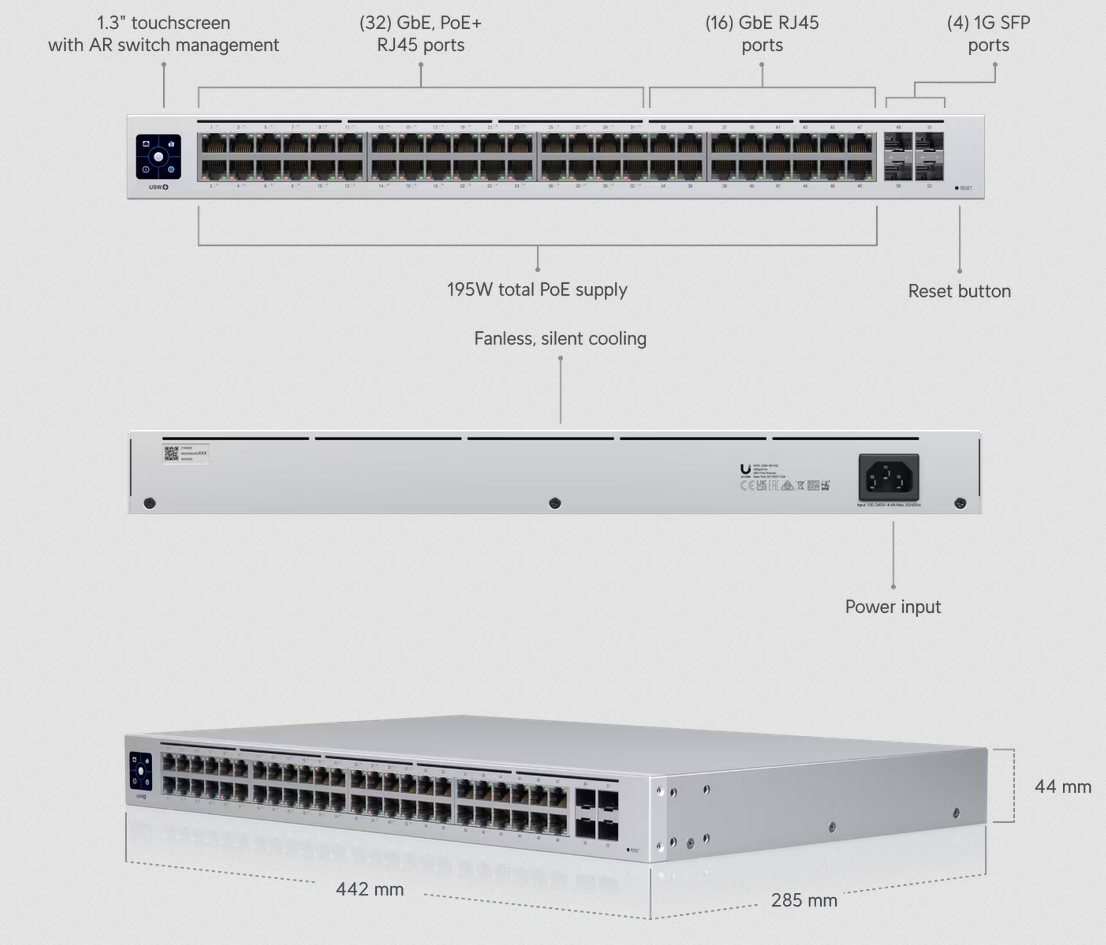

Networking interface		(48) GbE RJ45 ports (4) 1G SFP ports
PoE interface		(32) PoE/PoE+ (Pins 1, 2+; 3, 6-)
Total non-blocking throughput		52 Gbps
Switching capacity		104 Gbps
Forwarding rate		77.38 Mpps
Power method		Universal input, 100—240V AC, 50/60 Hz
Power supply		AC/DC, internal, 240W
Supported voltage range		100—240V AC
Max. power consumption		45W (Excluding PoE output)
Total available PoE		195W
Max. PoE wattage per port by PSE		PoE+: 32W
Voltage range PoE mode		PoE: 44-57V PoE+: 50-57V
ESD/EMP protection		Air: ± 16kV, contact: ± 12kV
LCM display		(1) 1.3" touchscreen
Button		Factory reset
Shock and vibration		ETSI300-019-1.4 Standard
Ambient operating temperature		-5 to 40° C
Ambient operating humidity		10 to 90% noncondensing
Certifications		CE, FCC, IC
Switching Features
Layer 2 features		IGMP snooping STP / RSTP with priorities and port-level disable Port isolation Storm control Voice VLAN Port mirroring LACP port aggregation Multicast / broadcast rate limiting MAC address blocking Flow control 802.1X control Jumbo frames Proprietary loop protection DHCP snooping / guarding Egress rate limit LLDP-MED Port restricted by MAC Device isolation with ACLs
Layer 3 features		–
LEDs
System		Status
Ethernet		PoE Speed/link/activity
SFP		Link/activity
Application Requirements
UniFi Network		Version 7.2.94 and later
