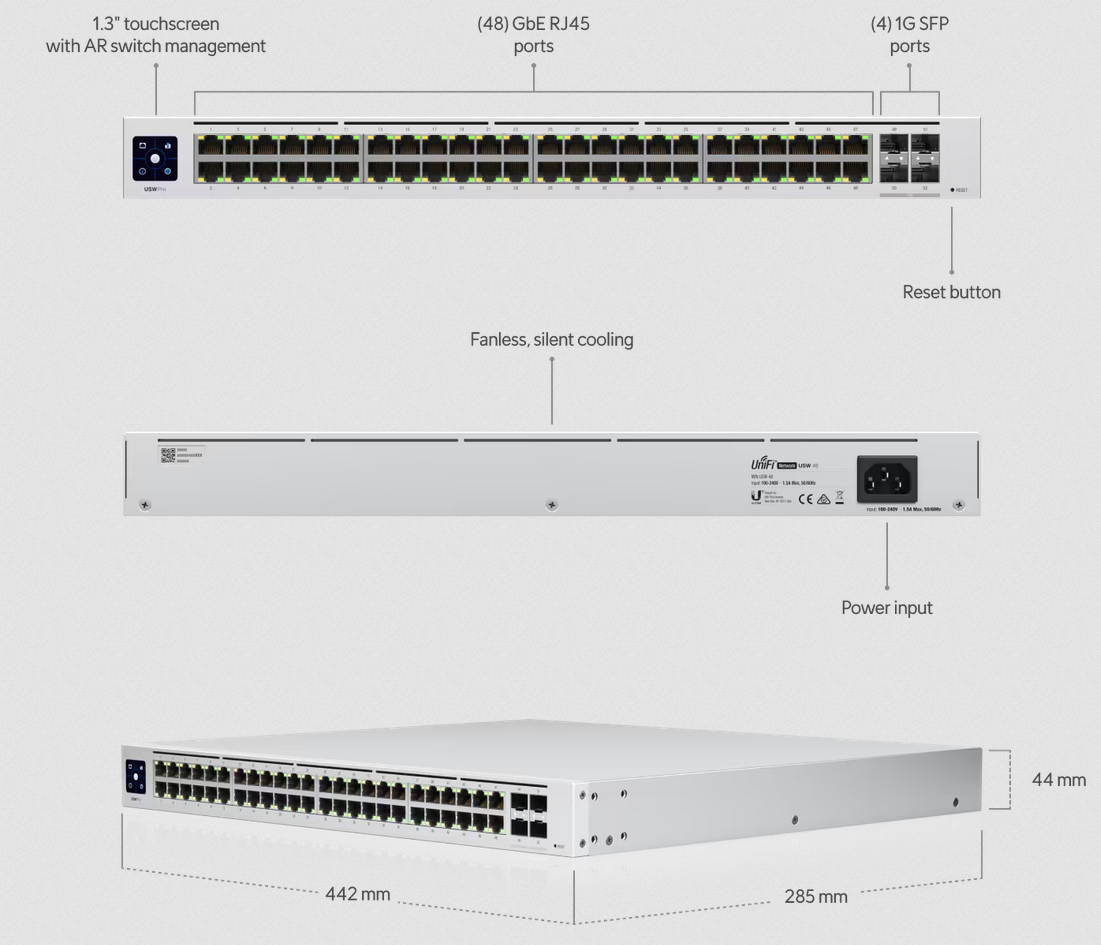

The Ubiquiti USW-48 is a robust 48-port managed switch designed to provide high-capacity network performance for growing businesses and complex home setups.
Featuring 48 Gigabit Ethernet ports and 4 SFP ports for fibre connectivity, it offers extensive options for building a versatile and scalable network.
Its fanless design ensures quiet operation, making it suitable for noise-sensitive environments.
With the powerful UniFi Controller, network management becomes simple, allowing you to monitor, configure, and optimise your network with ease.
Upgrade to the USW-48 for unmatched reliability, flexibility, and seamless connectivity in your network infrastructure.
Mechanical
Dimensions
442 x 285 x 44 mm
Weight
Without mounting brackets: 3.9 kg
With mounting brackets: 4 kg
Enclosure material
SGCC steel
Hardware
Management interface
Ethernet In-Band
Networking interface
(48) GbE RJ45 ports
(4) 1G SFP ports
Total non-blocking throughput
52 Gbps
Switching capacity
104 Gbps
Forwarding rate
77.376 Mpps
Power method
Universal input, 100—240V AC, 50/60 Hz
Power supply
AC/DC, internal, 60W
Supported voltage range
100—240V AC
Max. power consumption
40W
ESD/EMP protection
Air: ± 16kV, contact: ± 12kV
LCM display
(1) 1.3" touchscreen
Button
Factory reset
Ambient operating temperature
-5 to 40° C
Ambient operating humidity
10 to 90% noncondensing
Certifications
CE, FCC, IC
Switching Features
Layer 2 features
IGMP snooping
STP / RSTP with priorities and port-level disable
Port isolation
Storm control
Voice VLAN
Port mirroring
LACP port aggregation
Multicast / broadcast rate limiting
MAC address blocking
Flow control
802.1X control
Jumbo frames
Proprietary loop protection
DHCP snooping / guarding
Egress rate limit
LLDP-MED
Port restricted by MAC
Device isolation with ACLs
