NET-UBQ-SW-USW-24-POE

The Ubiquiti USW-24-PoE is a versatile 24-port managed switch with Power over Ethernet (PoE) capabilities, perfect for powering devices like access points, IP cameras, and VoIP phones.
Equipped with 16 Gigabit Ethernet PoE ports, it delivers up to 95W of total PoE power, ensuring reliable and seamless connectivity.
The intuitive UniFi Controller makes network management simple, allowing you to monitor performance and optimise settings effortlessly.
With its sleek design, fanless cooling, and robust Layer 2 features, the USW-24-PoE is the ideal solution for both small businesses and advanced home networks looking to expand their infrastructure.

Mechanical

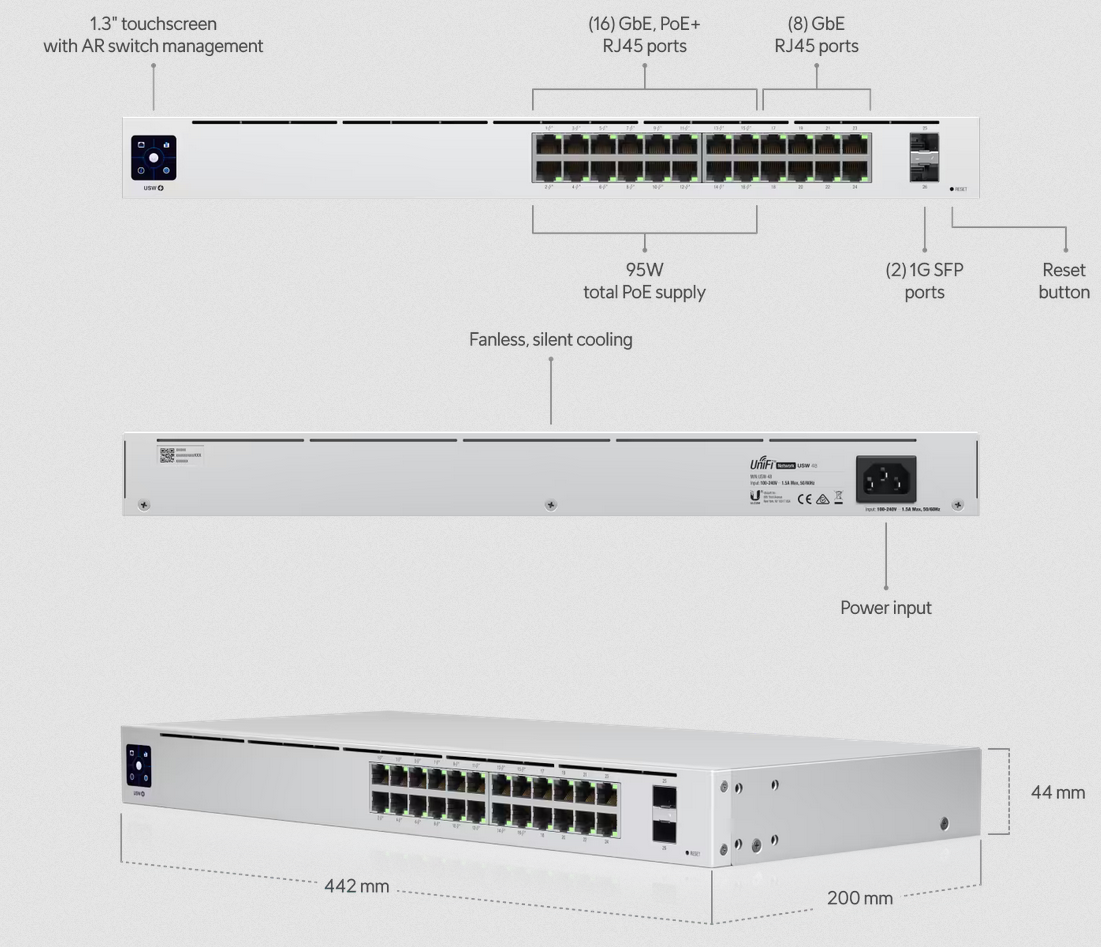

Dimensions		442 x 200 x 44 mm
Weight		Without mounting brackets: 3 kg With mounting brackets: 3.1 kg
Enclosure material		SGCC steel
Hardware
Management interface		Ethernet In-Band
Networking interface		(24) GbE RJ45 ports (2) 1G SFP ports
PoE interface		(16) PoE/PoE+ (Pins 1, 2+; 3, 6-)
Total non-blocking throughput		26 Gbps
Switching capacity		52 Gbps
Forwarding rate		38.69 Mpps
Power method		Universal input, 100—240V AC, 50/60 Hz
Power supply		AC/DC, internal, 120W
Supported voltage range		100—240V AC
Max. power consumption		25W (Excluding PoE output)
Total available PoE		95W
Max. PoE wattage per port by PSE		PoE+: 32W
Voltage range PoE mode		PoE: 44-57V PoE+: 50-57V
ESD/EMP protection		Air: ± 16kV, contact: ± 12kV
LCM display		(1) 1.3" touchscreen
Button		Factory reset
Shock and vibration		ETSI300-019-1.4 Standard
Ambient operating temperature		-5 to 40° C
Ambient operating humidity		10 to 90% noncondensing
Certifications		CE, FCC, IC
Switching Features
Layer 2 features		IGMP snooping STP / RSTP with priorities and port-level disable Port isolation Storm control Voice VLAN Port mirroring LACP port aggregation Multicast / broadcast rate limiting MAC address blocking Flow control 802.1X control Jumbo frames Proprietary loop protection DHCP snooping / guarding Egress rate limit LLDP-MED Port restricted by MAC Device isolation with ACLs
Layer 3 features		–
LEDs
System		Status
Ethernet		PoE Speed/link/activity
SFP		Link/activity
Application Requirements
UniFi Network		Version 7.2.94 and later
