NET-UBQ-SW-USW-24

The Ubiquiti USW-24 is a versatile and powerful fully managed 24-port switch, designed to elevate your network infrastructure.
With Gigabit Ethernet ports and robust Layer 2 features, it delivers high-performance switching capacity for both home and business environments.
Its fanless design ensures silent operation, making it perfect for noise-sensitive areas.
Additionally, the intuitive UniFi Controller allows for easy management and monitoring, simplifying network optimisation and scalability.
Enhance your network with the reliability and efficiency of the Ubiquiti USW-24 – the smart choice for seamless connectivity.

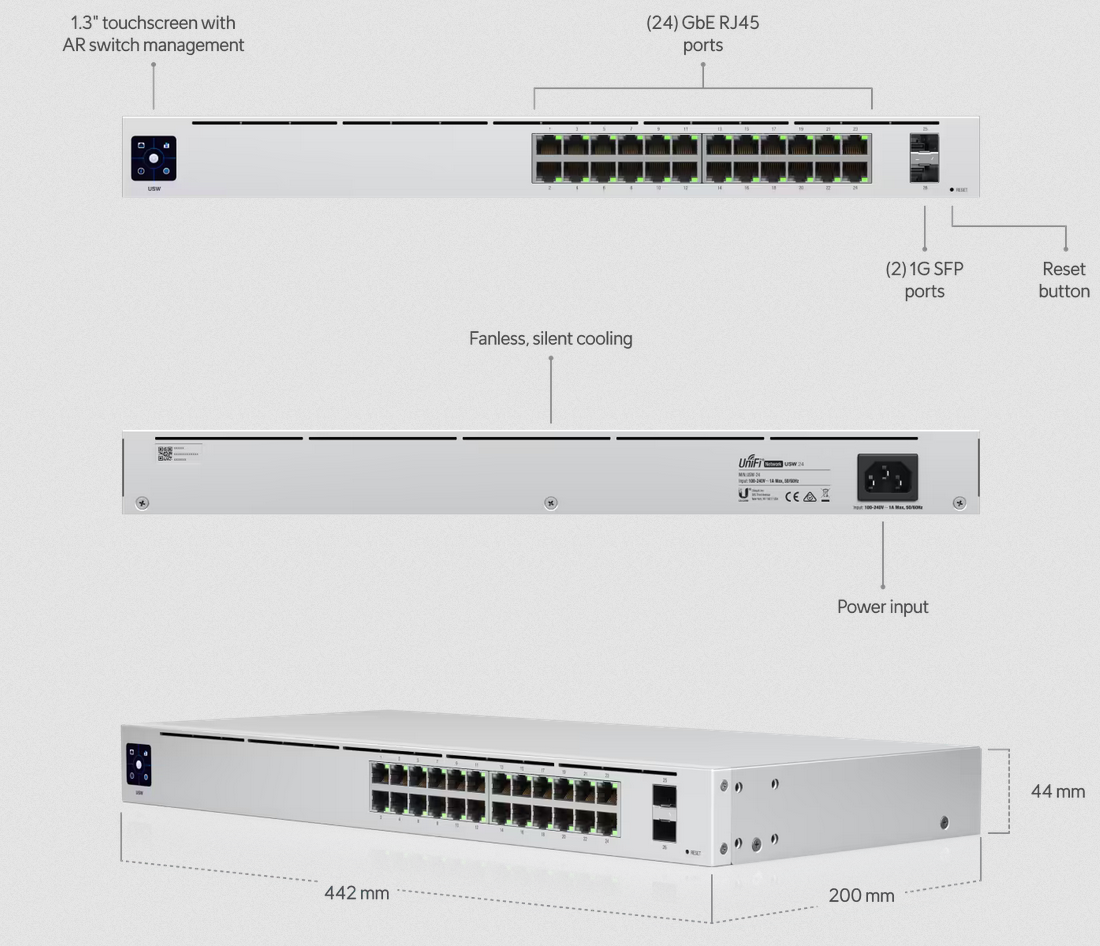

Mechanical
Dimensions		442 x 200 x 44 mm
Weight		Without mounting brackets: 2.7 kg With mounting brackets: 2.8 kg
Enclosure material		SGCC steel
Hardware
Management interface		Ethernet In-Band
Networking interface		(24) GbE RJ45 ports (2) 1G SFP ports
Total non-blocking throughput		26 Gbps
Switching capacity		52 Gbps
Forwarding rate		38.69 Mpps
Power method		Universal input, 100—240V AC, 50/60 Hz
Power supply		AC/DC, internal, 36W
Supported voltage range		100—240V AC
Max. power consumption		25W
ESD/EMP protection		Air: ± 16kV, contact: ± 12kV
LCM display		(1) 1.3" touchscreen
Button		Factory reset
Ambient operating temperature		-5 to 45° C
Ambient operating humidity		10 to 90% noncondensing
Certifications		CE, FCC, IC
Switching Features
Layer 2 features		IGMP snooping STP / RSTP with priorities and port-level disable Port isolation Storm control Voice VLAN Port mirroring LACP port aggregation Multicast / broadcast rate limiting MAC address blocking Flow control 802.1X control Jumbo frames Proprietary loop protection DHCP snooping / guarding Egress rate limit LLDP-MED Port restricted by MAC Device isolation with ACLs
Layer 3 features		–
LEDs
System		Status
Ethernet		Speed/link/activity
SFP		Link/activity
Application Requirements
UniFi Network		Version 7.2.94 and later
