Ubiquiti UniFi Redundant Power System

  • USP-RPS
headset

Local Support in Australia and New Zealand

heroicons/outline/truck

Quick Delivery Wide stock availability to respond to most requirements.

Need help from a specialist?

Our specialist support is available!

The Ubiquiti USP-RPS (UniFi SmartPower Redundant Power System) is a high-performance, rack-mountable backup power solution designed to ensure seamless operation of up to six UniFi devices in the event of a power supply failure.
With a 950W power budget and six dedicated USP DC output ports, it is ideal for safeguarding mission-critical devices like UniFi PoE switches.
The system features an automatic failover mechanism, allowing uninterrupted operation during power supply interruptions.

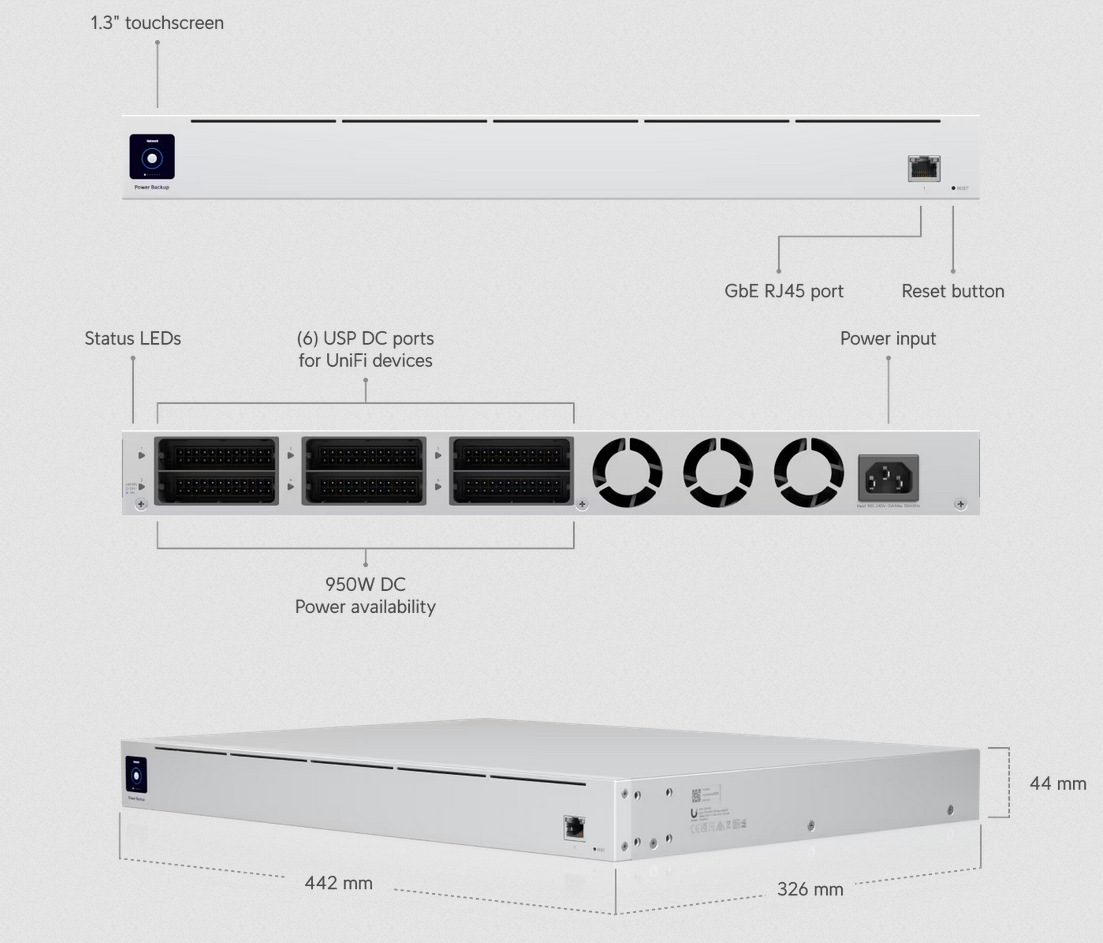

Additionally, it comes equipped with a 1.3" colour touchscreen for real-time monitoring and is managed via the UniFi Network Controller.
This robust solution ensures continuous power to keep your network running smoothly even in the most demanding environments​.

Mechanical
Dimensions 442.4 x 325.6 x 43.7 mm
Weight Without mounting brackets: 5.5 kg
With mounting brackets: 5.6 kg
Enclosure material SGCC steel



Hardware
Networking interface (1) GbE RJ45 port
Management interface Ethernet In-Band
Power output (6) RPS DC ports
Power method (1) Universal input, 100—240V AC
Max. power consumption 995W
Power supply Internal 350W AC/DC
Internal 645W AC/DC
Supported voltage range 100—240V AC
Total output power
52V DC 11.54A (600W)
11.5V DC 30.44A (350W)
Max. output power per RPS port
52V DC 11.54A (600W)
11.5V DC 30.44A (350W)
Display 1.3" touchscreen
ESD/EMP protection Air: ± 16kV, contact: ± 12kV
Ambient operating temperature -5 to 45° C
Ambient operating humidity 10 to 90% noncondensing
Certifications CE, FCC, IC



LEDs
System Status
Ethernet Link/activity
USP RPS Activity
Mpn USP-RPS
Brand Ubiquiti
