Ubiquiti UniFi Dream Machine Special Edition Firewall Gateway

  • UDM-SE
headset

Local Support in Australia and New Zealand

heroicons/outline/truck

Quick Delivery Wide stock availability to respond to most requirements.

Need help from a specialist?

Our specialist support is available!

The Ubiquiti UniFi Dream Machine Special Edition (UDM-SE) is an all-in-one network solution designed for seamless integration of enterprise-level features into home or business environments.
It includes a high-performance 1.7 GHz quad-core processor and supports dual-WAN connectivity with 10G SFP+ and 2.5 GbE RJ45 ports for robust and high-speed internet access.
The UDM-SE also features an 8-port gigabit PoE switch, with six ports supporting PoE, ideal for powering devices like access points and security cameras.



Additionally, it comes with an integrated Network Video Recorder (NVR) and 128 GB of internal SSD storage, which is perfect for managing UniFi Protect surveillance systems.
The device is also future-proofed to support upcoming UniFi OS applications and offers a simple setup process with its built-in Bluetooth radio.​

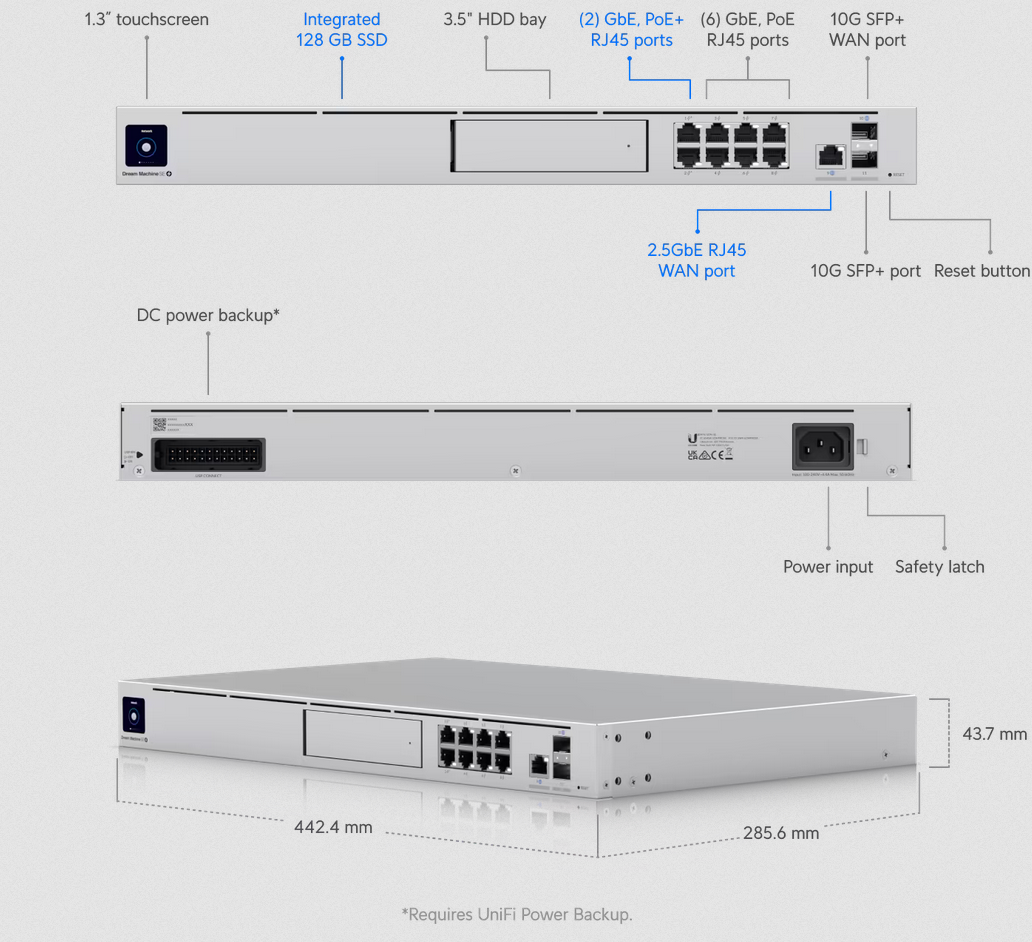

Mechanical
Dimensions 442.4 x 43.7 x 285.6 mm
Weight 5 kg
Enclosure material Aluminium CNC, SGCC steel
Mount material SGCC steel



Hardware
Processor Quad-core ARM® Cortex®-A57 at 1.7 GHz
System memory 4 GB DDR4
On-board storage 16 GB eMMC
Integrated 128 GB SSD
Management interface Ethernet
Bluetooth
Networking interface LAN:
(8) GbE RJ45 ports
(1) 10G SFP+ port

WAN:
(1) 2.5 GbE RJ45 port
(1) 10G SFP+ port
PoE interface (6) PoE (Pair A 1, 2+; 3, 6-)
(2) PoE+ (Pair A 1, 2+; 3, 6-)
IDS/IPS throughput 3.5 Gbps*
*Measured with iPerf3 on a DHCP network. Performance may be reduced with PPPoE depending on ISP implementation.
Power method (1) Universal AC input, 100—240V AC, 4.4A Max., 50/60 Hz
(1) USP-RPS DC input, 52V DC, 3.94A
Power supply AC/DC, internal, 240W
Supported voltage range 100—240V AC
Max. power consumption 50W (Excluding PoE output)
PoE budget 180W
Max. PoE wattage per port by PSE PoE: 15.4W
PoE+: 30W
Voltage range PoE mode PoE: 44—57V
PoE+: 50—57V
ESD/EMP protection Air: ± 15kV, contact: ± 8kV
LCM display (1) 1.3" touchscreen
Button Factory reset
Ambient operating temperature -10 to 40° C
Ambient operating humidity 5 to 95% noncondensing
Certifications CE, FCC, IC



Gateway Features
Performance Redundant WAN with failover and load balancing
WiFi QoS with UniFi APs
Application, domain, and country-based QoS
Application and device type identification
Additional internet failover with LTE Backup
Internet quality and outage reporting

Next-generation security Application-aware firewall rules
Signature-based IPS/IDS threat detection
Content, country, domain, and ad filtering
VLAN/subnet-based traffic segmentation
Full stateful firewall

Advanced networking License-free SD-WAN
WireGuard, L2TP and OpenVPN server
OpenVPN client
OpenVPN and IPsec site-to-site VPN
One-click Teleport and Identity VPN
Policy-based WAN and VPN routing
DHCP relay
Customizable DHCP server
IGMP proxy
IPv6 ISP support



LEDs
Ethernet White: link/activity
SFP+ White: link/activity
HDD White: disk activity
Amber: disk error
RPS Blue: ready
Mpn UDM-SE
Brand Ubiquiti
