NET-UBQ-AP-U7-PRO-MAX
NET-UBQ-AP-U7-PRO-MAX
NET-UBQ-AP-U7-PRO-MAX
Ubiquiti UniFi WiFi7 U7 Pro Max Wireless Access Point
Local Support in Australia and New Zealand
Quick Delivery Wide stock availability to respond to most requirements.
Our specialist support is available!

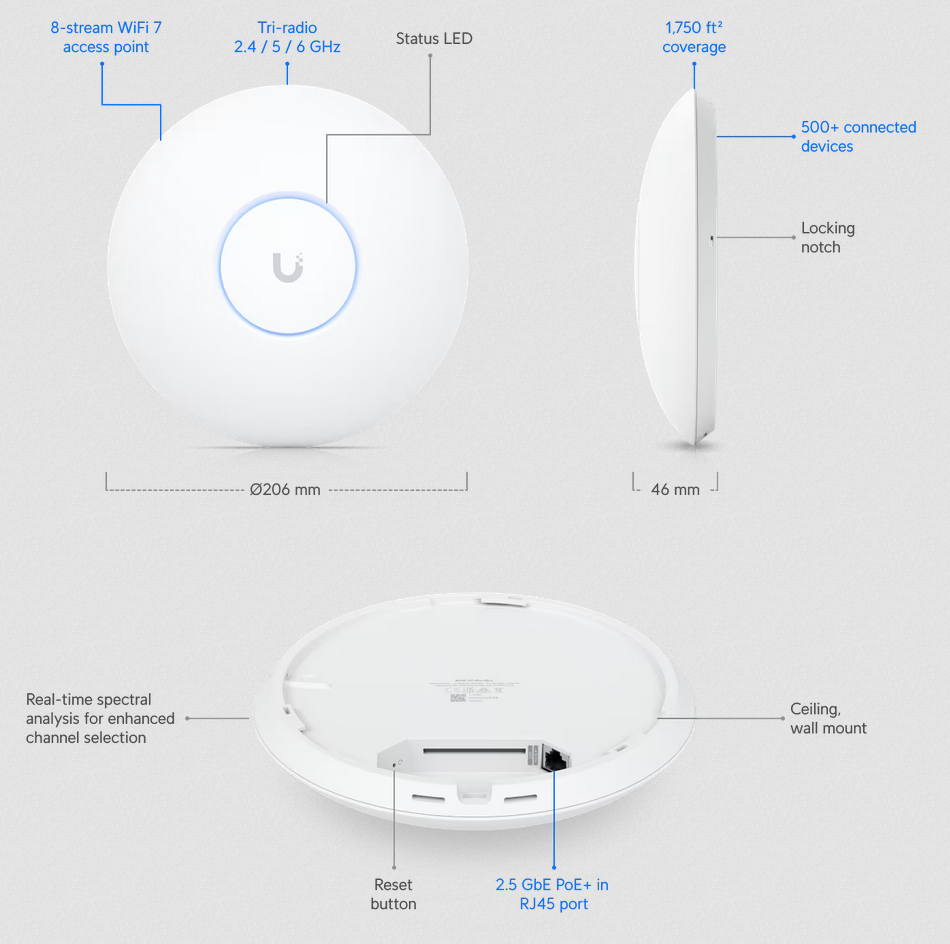

The Ubiquiti UniFi U7-Pro-Max is a top-tier WiFi 7 access point, designed to handle the most demanding networking environments.
With support for WiFi 7 (802.11be), it offers exceptional performance, including up to 15.1 Gbps combined throughput across its 2.4 GHz, 5 GHz, and 6 GHz bands.
This makes it perfect for high-bandwidth applications like virtual reality and 4K streaming in large office spaces or event venues.
The device includes 8 spatial streams, allowing it to handle over 500 devices simultaneously, and features a dedicated spectral scanning engine for real-time interference management.
Powered via PoE+, the U7-Pro-Max is built for modern high-performance deployments.
| Mechanical | ||
| Dimensions | ⌀ 206 x 46 mm | |
| Weight | 680 g | |
| Enclosure material | Polycarbonate, aluminium | |
| Mount material | Stainless stell (SUS304), galvanized steel (SGCC) | |
| Hardware | ||
| Networking interface | (1) 1/2.5 GbE RJ45 port | |
| Management interface | Ethernet | |
| Power method | PoE+ | |
| Power supply | UniFi PoE switch | |
| Supported voltage range | 44-57V DC | |
| Max. power consumption | 25W | |
| Max. TX power | ||
| 2.4 GHz | 23 dBm | |
| 5 GHz | 29 dBm | |
| 6 GHz | 23 dBm | |
| MIMO | ||
| 2.4 GHz | 2 x 2 (DL/UL MU-MIMO) | |
| 5 GHz | 4 x 4 (DL/UL MU-MIMO) | |
| 6 GHz | 2 x 2 (DL/UL MU-MIMO) | |
| Max. data rate | ||
| 2.4 GHz | 688 Mbps (BW40) | |
| 5 GHz | 8.6 Gbps (BW240) | |
| 6 GHz | 5.7 Gbps (BW320) | |
| Antenna gain | ||
| 2.4 GHz | 4 dBi | |
| 5 GHz | 6 dBi | |
| 6 GHz | 5.9 dBi | |
| LEDs | White/blue | |
| Button | Factory reset | |

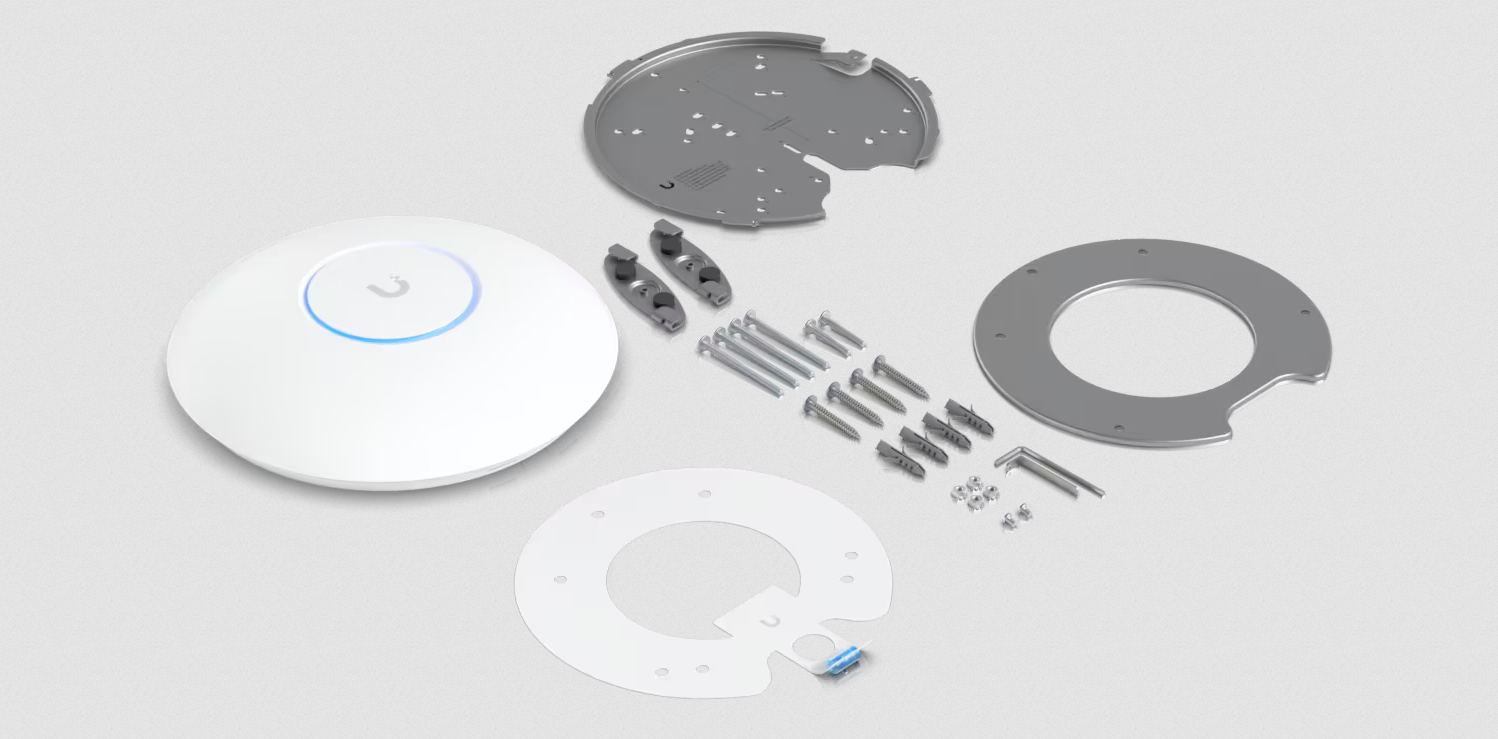

| Mounting | Wall, ceiling (Included) | |
| Ambient operating temperature | -30 to 50° C | |
| Ambient operating humidity | 5 to 95% noncondensing | |
| Certifications | CE, FCC, IC | |
| Software | ||
| WiFi standards | 802.11a/b/g/n/ac/ax/be (WiFi 6/6E, WiFi 7) | |
| Wireless security | WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3/PPSK) | |
| BSSID | 8 per radio | |
| VLAN | 802.1Q | |
| Advanced QoS | Per-user rate limiting | |
| Guest traffic isolation | Supported | |
| Concurrent clients | 500+ | |
| Supported Data Rates | ||
| 802.11a | 6, 9, 12, 18, 24, 36, 48, 54 Mbps | |
| 802.11b | 1, 2, 5.5, 11 Mbps | |
| 802.11g | 6, 9, 12, 18, 24, 36, 48, 54 Mbps | |
| 802.11n | 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40) | |
| 802.11ac | 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160) | |
| 802.11ax (WiFi 6/6E) | 7.3 Mbps to 4.8 Gbps (MCS0 - MCS11 NSS1/2/3/4, HE 20/40/80/160) | |
| 802.11be (WiFi 7) | ||
| 5 GHz | 7.3 Mbps to 8.6 Gbps (MCS0 - MCS13 NSS1/2/3/4, EHT 20/40/80/160/240) | |
| 6 GHz | 7.3 Mbps to 5.7 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240/320) | |
| Application Requirements | ||
| UniFi Network | Version 8.2.93 and later |
| Section Name | Description |
|---|---|
| Mpn | U7-Pro-Max |
| Brand | Ubiquiti |
