NET-UBQ-AP-U6-LR
NET-UBQ-AP-U6-LR
NET-UBQ-AP-U6-LR
Ubiquiti UniFi WiFi6 U6 Pro Long Range Access Point
Local Support in Australia and New Zealand
Quick Delivery Wide stock availability to respond to most requirements.
Our specialist support is available!

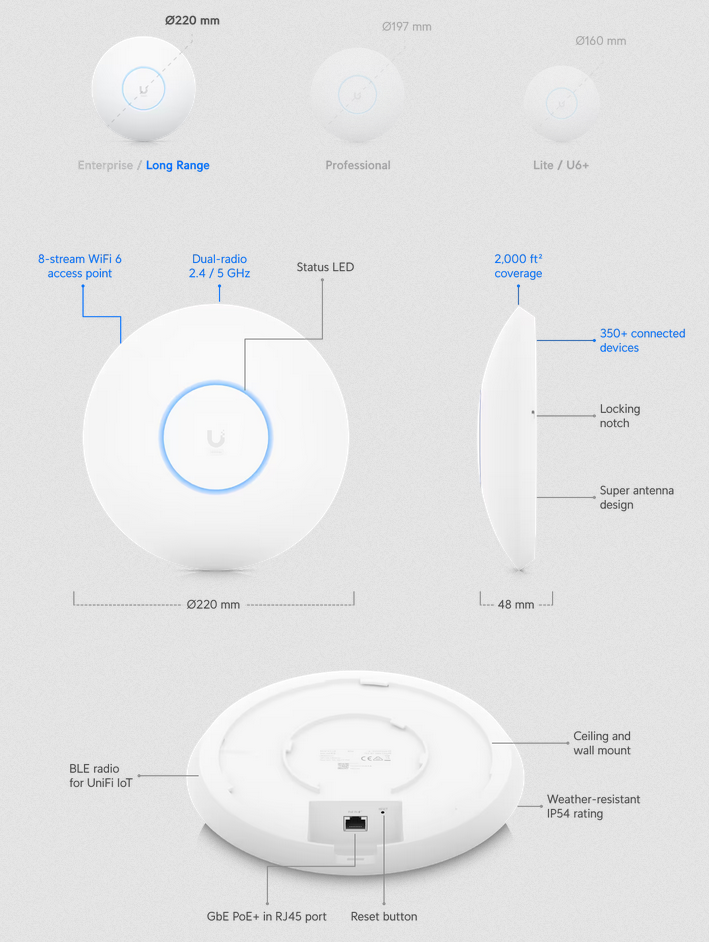

The Ubiquiti UniFi U6-LR (Long-Range) is a high-performance Wi-Fi 6 access point designed to deliver robust wireless coverage for large areas.
With a dual-band AX3000 rating, it offers impressive speeds, reaching up to 2.4 Gbps on the 5 GHz band and 600 Mbps on the 2.4 GHz band.
The U6-LR is equipped with 4x4 MU-MIMO and OFDMA technology to handle high-density environments, supporting over 350 connected devices.
This access point is ideal for indoor and semi-outdoor installations, thanks to its IP54 weather resistance.
Powered via PoE+, it features a single Gigabit Ethernet port and is perfect for businesses or homes that need extended range coverage with reliable performance.
The UniFi cloud management platform offers seamless control, ensuring that network administrators can easily monitor and configure the device.
| Mechanical | ||
| Dimensions | ⌀ 220 x 48 mm | |
| Weight | Without mount: 800 g
With mount: 930 g |
|
| Enclosure material | Polycarbonate | |
| Mount material | Stainless steel (SUS304) | |
| Weatherproofing | IP54 | |
| Hardware | ||
| Networking interface | (1) GbE RJ45 port | |
| Management interface | Ethernet
Bluetooth |
|
| Power method | PoE+
Passive PoE, 48V |
|
| Power supply | UniFi PoE switch
48V, 0.5A PoE adapter (Not included) |
|
| Supported voltage range | 44-57V DC | |
| Max. power consumption | 18.5W | |
| Max. TX power | ||
| 2.4 GHz | 26 dBm | |
| 5 GHz | 26 dBm | |
| 6 GHz | - | |
| MIMO | ||
| 2.4 GHz | 4 x 4 (SU-MIMO) | |
| 5 GHz | 4 x 4 (DL/UL MU-MIMO) | |
| 6 GHz | - | |
| Max. data rate | ||
| 2.4 GHz | 600 Mbps (BW40) | |
| 5 GHz | 2.4 Gbps (BW160) | |
| 6 GHz | - | |
| Antenna gain | ||
| 2.4 GHz | 4 dBi | |
| 5 GHz | 5.5 dBi | |
| 6 GHz | - | |
| LEDs | White/blue | |
| Button | Factory reset | |

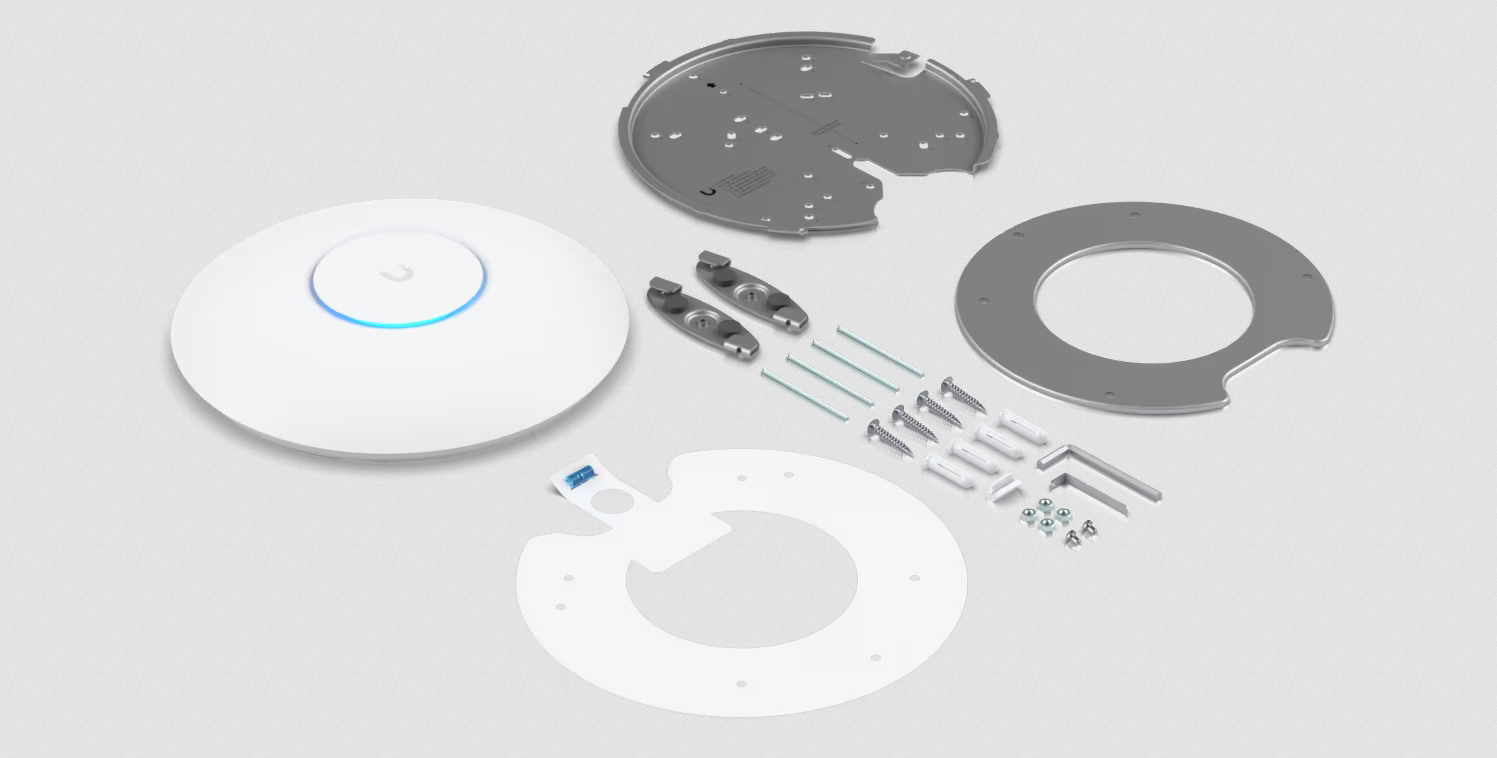

| Mounting | Wall, ceiling (Included) | |
| Ambient operating temperature | -30 to 60° C | |
| Ambient operating humidity | 5 to 95% noncondensing | |
| Certifications | CE, FCC, IC | |
| Software | ||
| WiFi standards | 802.11a/b/g/n/ac/ax (WiFi 6) | |
| Wireless security | WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3) | |
| BSSID | 8 per radio | |
| VLAN | 802.1Q | |
| Advanced QoS | Per-user rate limiting | |
| Guest traffic isolation | Supported | |
| Concurrent clients | 350+ | |
| Supported Data Rates | ||
| 802.11a | 6, 9, 12, 18, 24, 36, 48, 54 Mbps | |
| 802.11b | 1, 2, 5.5, 11 Mbps | |
| 802.11g | 6, 9, 12, 18, 24, 36, 48, 54 Mbps | |
| 802.11n | 6.5 Mbps to 600 Mbps (MCS0 - MCS31, HT 20/40) | |
| 802.11ac | 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80)
6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 160) |
|
| 802.11ax (WiFi 6) | 7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2/3/4, HE 20/40/80)
7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 160) |
|
| Application Requirements | ||
| UniFi Network | Version 6.0.34 and later |
| Section Name | Description |
|---|---|
| Mpn | U6-LR |
| Brand | Ubiquiti |
