Ubiquiti UniFi WiFi6 U6 Lite Access Point
Local Support in Australia and New Zealand
Quick Delivery Wide stock availability to respond to most requirements.
Our specialist support is available!

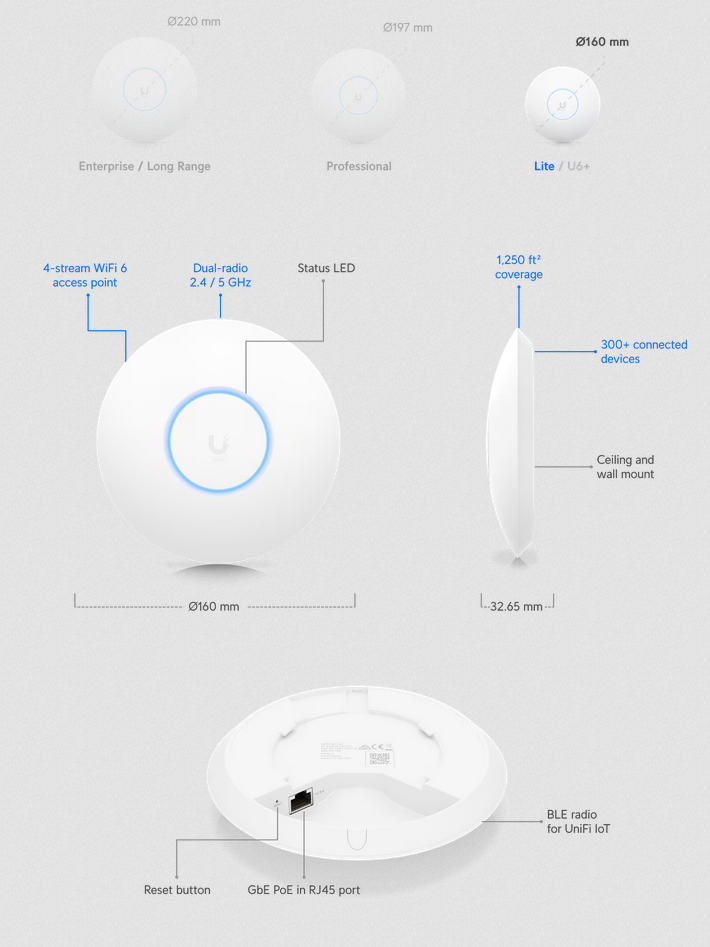

The Ubiquiti UniFi U6-Lite is a compact, affordable Wi-Fi 6 access point, designed for both home and small business environments.
Offering dual-band Wi-Fi 6 with a maximum wireless speed of up to 1.5 Gbps, it supports 2x2 MU-MIMO and OFDMA technology for enhanced performance in busy networks.
The U6-Lite is ideal for high-density environments and can be seamlessly integrated with the UniFi Network Application, providing easy management and robust performance monitoring.
Its compact form factor makes it versatile for ceiling or wall installations, making it a cost-effective yet powerful solution for reliable Wi-Fi coverage.
| Mechanical | ||
| Dimensions | ⌀ 160 x 33 mm | |
| Weight | Without mount: 300 g
With mount: 3150 g |
|
| Enclosure material | Polycarbonate, aluminium | |
| Mount material | Polycarbonate, SGCC steel | |
| Hardware | ||
| Networking interface | (1) GbE RJ45 port | |
| Management interface | Ethernet
Bluetooth |
|
| Power method | PoE
Passive PoE, 48V |
|
| Power supply | PoE
48V, 0.32A PoE adapter (Not included) |
|
| Supported voltage range | 44-57V DC | |
| Max. power consumption | 12W | |
| Max. TX power | ||
| 2.4 GHz | 23 dBm | |
| 5 GHz | 23 dBm | |
| 6 GHz | - | |
| MIMO | ||
| 2.4 GHz | 2 x 2 (SU-MIMO) | |
| 5 GHz | 2 x 2 (DL/UL MU-MIMO) | |
| 6 GHz | - | |
| Max. data rate | ||
| 2.4 GHz | 300 Mbps (BW40) | |
| 5 GHz | 1.2 Gbps (BW80) | |
| 6 GHz | - | |
| Antenna gain | ||
| 2.4 GHz | 2.8 dBi | |
| 5 GHz | 3 dBi | |
| 6 GHz | - | |
| LEDs | White/blue | |
| Button | Factory reset | |
| Mounting | Wall, ceiling (Included) | |
| Ambient operating temperature | -30 to 60° C | |
| Ambient operating humidity | 5 to 95% noncondensing | |
| Certifications | CE, FCC, IC | |
| Software | ||
| WiFi standards | 802.11a/b/g/n/ac/ax (WiFi 6) | |
| Wireless security | WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3) | |
| BSSID | 8 per radio | |
| VLAN | 802.1Q | |
| Advanced QoS | Per-user rate limiting | |
| Guest traffic isolation | Supported | |
| Concurrent clients | 300+ | |
| Supported Data Rates | ||
| 802.11a | 6, 9, 12, 18, 24, 36, 48, 54 Mbps | |
| 802.11b | 1, 2, 5.5, 11 Mbps | |
| 802.11g | 6, 9, 12, 18, 24, 36, 48, 54 Mbps | |
| 802.11n | 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40) | |
| 802.11ac | 6.5 Mbps to 866.7 Mbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80) | |
| 802.11ax (WiFi 6) | 7.3 Mbps to 1.2 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80) | |
| Application Requirements | ||
| UniFi Network | Version 5.14.3 and later |
| Section Name | Description |
|---|---|
| Mpn | U6-LITE |
| Brand | Ubiquiti |
