Ubiquiti UniFi WiFi6 U6 Enterprise Wireless Access Point
Local Support in Australia and New Zealand
Quick Delivery Wide stock availability to respond to most requirements.
Our specialist support is available!
The Ubiquiti UniFi U6-Enterprise is a powerful Wi-Fi 6E access point designed to provide robust, high-speed wireless connectivity across tri-band frequencies: 2.4 GHz, 5 GHz, and the less congested 6 GHz band.
Capable of delivering up to 10.2 Gbps of total throughput, it supports up to 600 clients and offers seamless connectivity for modern, high-density environments like offices or smart homes.
The U6-Enterprise features MU-MIMO support, ensuring efficient data streaming and fast web access, while WPA3 encryption keeps networks secure.
It includes a 2.5 Gbps PoE+ port for power and data transfer through a single cable, making installation simple and flexible.
This access point is ideal for businesses and advanced home setups seeking high-speed, secure, and scalable wireless coverage with the latest Wi-Fi 6E technology

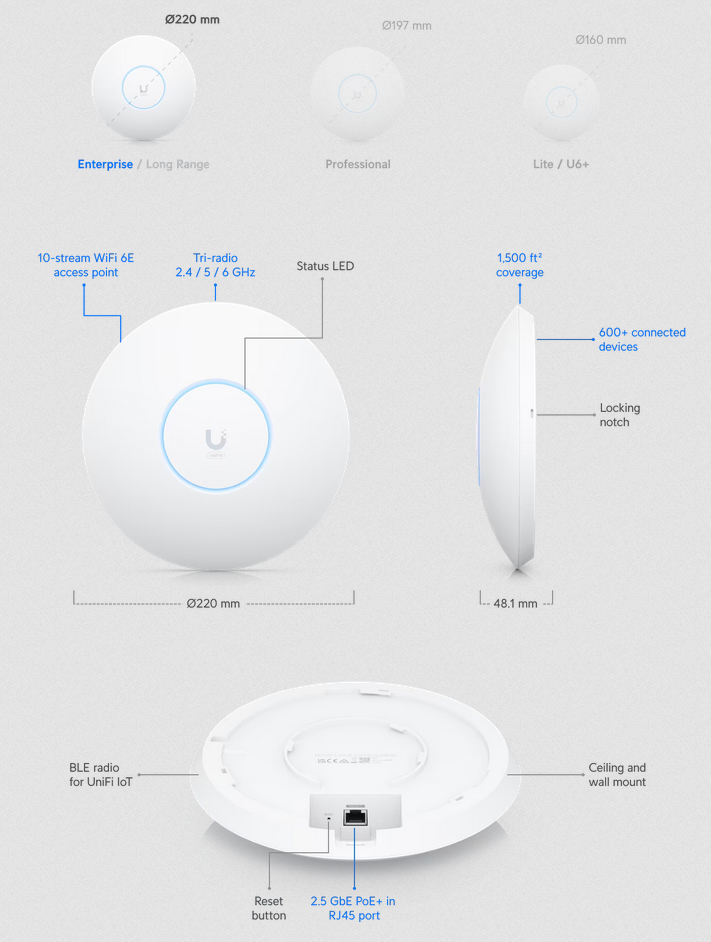

| Mechanical | ||
| Dimensions | ⌀ 220 x 48 mm | |
| Weight | Without mount: 960 g
With mount: 1090 g |
|
| Enclosure material | Polycarbonate, aluminium | |
| Mount material | Stainless stell (SUS304) | |
| Hardware | ||
| Networking interface | (1) 1/2.5 GbE RJ45 port | |
| Management interface | Ethernet
Bluetooth |
|
| Power method | PoE+ | |
| Power supply | UniFi PoE switch
48V, 0.5A PoE adapter (Optional) |
|
| Supported voltage range | 44-57V DC | |
| Max. power consumption | 22W | |
| Max. TX power | ||
| 2.4 GHz | 22 dBm | |
| 5 GHz | 26 dBm | |
| 6 GHz | 26 dBm | |
| MIMO | ||
| 2.4 GHz | 2 x 2 (DL/UL MU-MIMO) | |
| 5 GHz | 4 x 4 (DL/UL MU-MIMO) | |
| 6 GHz | 4 x 4 (DL/UL MU-MIMO) | |
| Max. data rate | ||
| 2.4 GHz | 573.5 Mbps (BW40) | |
| 5 GHz | 4.8 Gbps (BW160) | |
| 6 GHz | 4.8 Gbps (BW160) | |
| Antenna gain | ||
| 2.4 GHz | 3.2 dBi | |
| 5 GHz | 5.3 dBi | |
| 6 GHz | 6 dBi | |
| LEDs | White/blue | |
| Button | Reboot and factory reset | |
| Mounting | Wall, ceiling (Included) | |
| Ambient operating temperature | -30 to 60° C | |
| Ambient operating humidity | 5 to 95% noncondensing | |
| Certifications | CE, FCC, IC | |
| Software | ||
| WiFi standards | 802.11a/b/g/n/ac/ax (WiFi 6/6E) | |
| Wireless security | WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3) | |
| BSSID | 8 per radio | |
| VLAN | 802.1Q | |
| Advanced QoS | Per-user rate limiting | |
| Guest traffic isolation | Supported | |
| Concurrent clients | 600+ | |
| Zero-wait DFS | Yes*
*Supported with upcoming firmware versions. |
|
| Supported Data Rates | ||
| 802.11a | 6, 9, 12, 18, 24, 36, 48, 54 Mbps | |
| 802.11b | 1, 2, 5.5, 11 Mbps | |
| 802.11g | 6, 9, 12, 18, 24, 36, 48, 54 Mbps | |
| 802.11n | 6.5 Mbps to 600 Mbps (MCS0 - MCS31, HT 20/40) | |
| 802.11ac | 6.5 Mbps to 3.4 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80/160) | |
| 802.11ax (WiFi 6/6E) | 7.3 Mbps to 4.8 Gbps (MCS0 - MCS11 NSS1/2/3/4, HE 20/40/80/160) | |
| Application Requirements | ||
| UniFi Network | Version 7.2.91 and later |
| Section Name | Description |
|---|---|
| Mpn | U6-Enterprise |
| Brand | Ubiquiti |
