Ubiquiti UniFi WiFi6 U6+ Access Point
Local Support in Australia and New Zealand
Quick Delivery Wide stock availability to respond to most requirements.
Our specialist support is available!

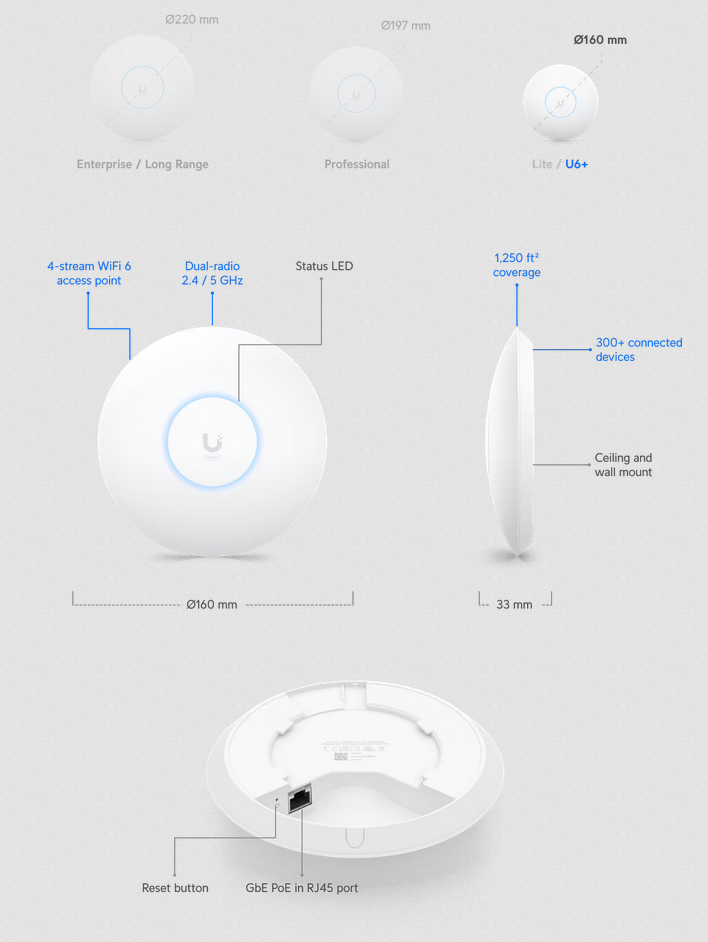

The Ubiquiti UniFi U6-Plus is a compact, dual-band WiFi 6 access point designed to provide high-speed connectivity and enhanced performance for small to medium-sized businesses.
With its ability to support up to 300 devices, the U6-Plus delivers a total data rate of up to 3 Gbps, making it ideal for environments demanding high throughput and reliability.
It offers wide coverage (up to 140 square metres) and is powered via PoE, which simplifies deployment.
The device is easily managed through the UniFi Network Application or mobile app, providing seamless control over your network setup.
| Mechanical | ||
| Dimensions | ⌀ 160 x 33 mm | |
| Weight | Without mount: 338 g
With mount: 413 g |
|
| Enclosure material | Polycarbonate, aluminium | |
| Mount material | ABS, SGCC steel | |
| Hardware | ||
| Networking interface | (1) GbE RJ45 port | |
| Management interface | Ethernet | |
| Power method | PoE | |
| Supported voltage range | 44-57V DC | |
| Max. power consumption | 9W | |
| Max. TX power | ||
| 2.4 GHz | 23 dBm | |
| 5 GHz | 23 dBm | |
| 6 GHz | - | |
| MIMO | ||
| 2.4 GHz | 2 x 2 (DL/UL MU-MIMO) | |
| 5 GHz | 2 x 2 (DL/UL MU-MIMO) | |
| 6 GHz | - | |
| Max. data rate | ||
| 2.4 GHz | 573.5 Mbps (BW40) | |
| 5 GHz | 2.4 Gbps (BW160) | |
| 6 GHz | - | |
| Antenna gain | ||
| 2.4 GHz | 3 dBi | |
| 5 GHz | 5.4 dBi | |
| 6 GHz | - | |
| LEDs | White/blue | |
| Button | Factory reset | |

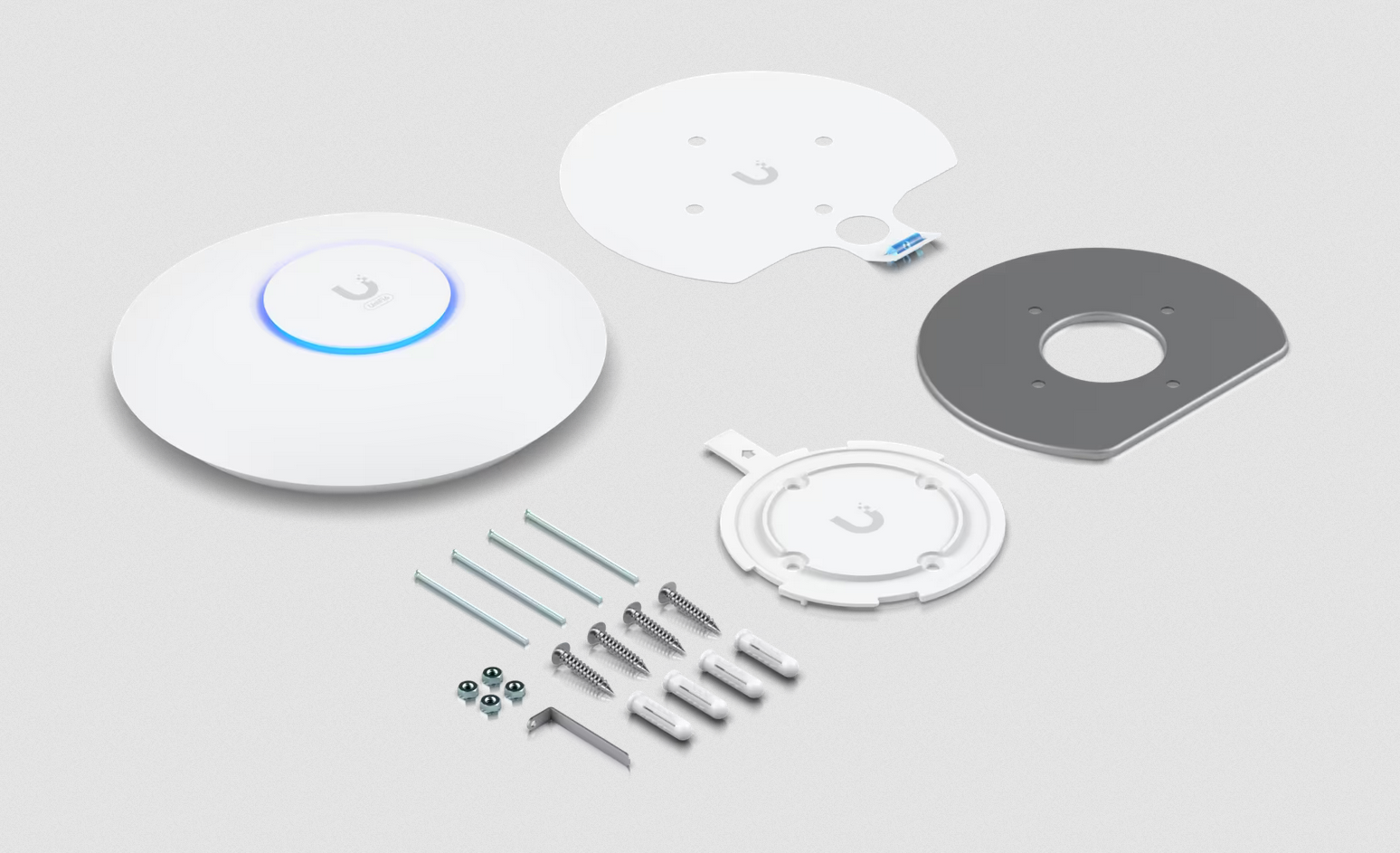

| Mounting | Wall, ceiling (Included) | |
| Ambient operating temperature | -30 to 60° C | |
| Ambient operating humidity | 5 to 95% noncondensing | |
| Certifications | CE, FCC, IC | |
| Software | ||
| WiFi standards | 802.11a/b/g/n/ac/ax (WiFi 6) | |
| Wireless security | WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3) | |
| BSSID | 8 per radio | |
| VLAN | 802.1Q | |
| Advanced QoS | Per-user rate limiting | |
| Guest traffic isolation | Supported | |
| Zero-wait DFS | Yes*
*Supported with upcoming firmware versions. |
|
| Concurrent clients | 300+ | |
| Supported Data Rates | ||
| 802.11a | 6, 9, 12, 18, 24, 36, 48, 54 Mbps | |
| 802.11b | 1, 2, 5.5, 11 Mbps | |
| 802.11g | 6, 9, 12, 18, 24, 36, 48, 54 Mbps | |
| 802.11n | 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40) | |
| 802.11ac | 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160) | |
| 802.11ax (WiFi 6) | 7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160) | |
| Application Requirements | ||
| UniFi Network | Version 7.3.76 and later |
| Section Name | Description |
|---|---|
| Mpn | U6+ |
| Brand | Ubiquiti |
