TrueNAS Community Edition Systems

DiGiCOR-TrueNAS-CE-Compact-Tower

Offered in 2U 12-bay or 4U 36-bay variants, TrueNAS Comminity Edition, built on Digicor server hardware, gives you the freedom to use file, block, or object storage plus container and VM support to scale according to your needs.

Features include snapshots, replication, and RAID-Z, providing a highly reliable and versatile storage solution.

TrueNAS Community Edition gives you the freedom to use file, block, or object storage plus container and VM support to scale according to your needs.

headset

Local Support in Australia and New Zealand

heroicons/outline/truck

Quick Delivery Wide stock availability to respond to most requirements.

Need help from a specialist?

Our specialist support is available!

heroicons/outline/phone-outgoing heroicons/outline/chat Talk to an expert
Attention needed: All text with a yellow background is debug information and will be hidden in production environment



















All Section Names:
























































Your configuration











                        A$59,521.66








































































Summary









































Legendary Reliability



TrueNAS is built on the ZFS filesystem, giving you unparalleled protection whether you’re a business or an individual.

Features include snapshots, replication, and RAID-Z, providing a highly reliable and versatile storage solution.




Universal & Unified Storage

TrueNAS is the world’s most popular storage OS because it’s the only universal and unified data platform, giving you the freedom to use file, block, or object storage plus container and VM support to scale according to your needs.




Open Storage that Scales

TrueNAS SCALE is an Open Source Infrastructure solution. In addition to powerful storage capabilities, SCALE adds Linux Containers and VMs (KVM) so your organisation can run workloads closer to data.



TNCE-SST-1TL430-I4

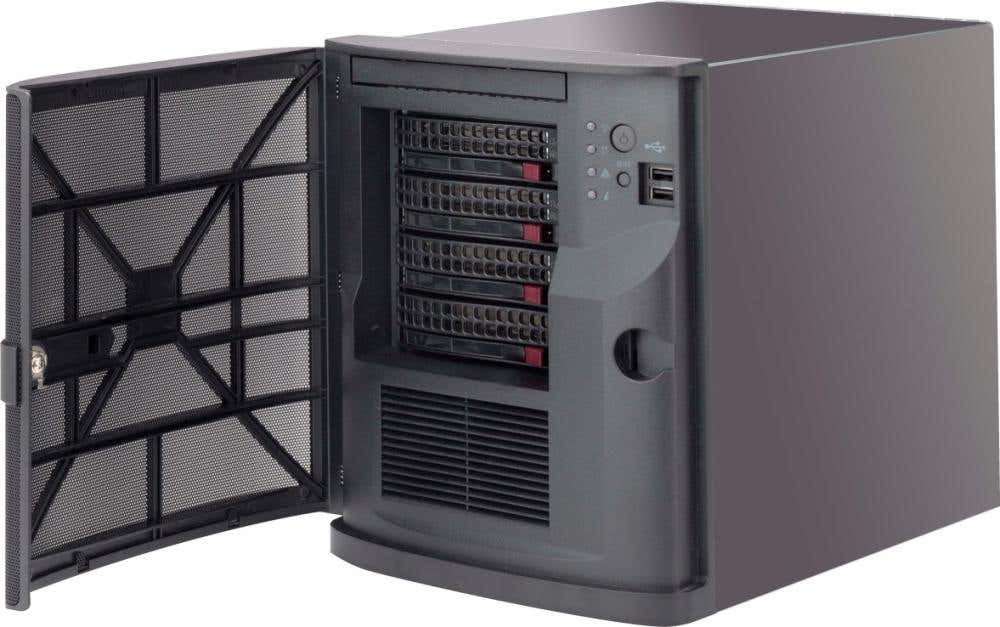

TNCE-SST-1TL430-I4 is a compact mini-tower, 4-bay server pre-installed with TrueNAS Community Edition




TrueNAS Comminity Edition, built on Digicor server hardware, gives you the freedom to use file, block, or object storage plus container and VM support to scale according to your needs.

Features include snapshots, replication, and RAID-Z, providing a highly reliable and versatile storage solution.

TrueNAS Community Edition gives you the freedom to use file, block, or object storage plus container and VM support to scale according to your needs.

Software support is provided through the TrueNAS Community Forums.




Key Features



  • Compact mini-tower server with 4x 3.5" drive bays can accommodate high capacity SATA HDDs, faster performance SATA SSDs, or a mix of both.

  • Single Intel Xeon E-2400 series processor with 6 or 8 cores, supporting VMs, apps and containers.

  • 32GB-64GB DDR5 ECC UDIMM.

  • Option for a SATA SSD for caching to improve HDD performance.

  • Dual 1Gb RJ-45 ports onboard, and options for additional networking connections.

  • Dedicated remote management port for out-of-band management of system.

  • TrueNAS Community Edition software preinstalled.

TNCE-CSR-12LA51-A4

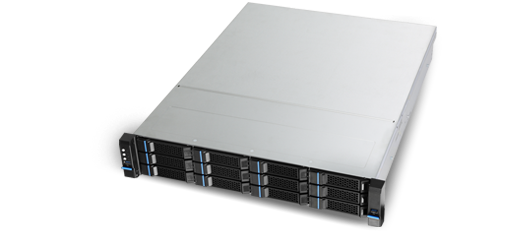

TNCE-CSR-12LA51-A4 is a 2U, 12-bay server pre-installed with TrueNAS Community Edition




TrueNAS Comminity Edition, built on Digicor server hardware, gives you the freedom to use file, block, or object storage plus container and VM support to scale according to your needs.

Features include snapshots, replication, and RAID-Z, providing a highly reliable and versatile storage solution.

TrueNAS Community Edition gives you the freedom to use file, block, or object storage plus container and VM support to scale according to your needs.

Software support is provided through the TrueNAS Community Forums.




Key Features



  • 12x 3.5" bays can accommodate high capacity SATA HDDs, faster performance SATA SSDs, or a mix of both.

  • Single AMD EPYC 9004 series processor with 16, 24 or 36 cores, supporting VMs, apps and containers.

  • 128GB - 384GB DDR5 ECC RDIMM.

  • Option for up to 2x SATA SSDs for caching to improve HDD performance.

  • Dual 10Gb RJ-45 ports onboard, and options for additional networking connections.

  • Scale-up storage through the connection of additional JBOD storage enclosures.

  • Dedicated remote management port for out-of-band management of system.

  • TrueNAS Community Edition software preinstalled.

TNCE-CSR-14LD51-A4





TNCE-CSR-14LD51-A4 is a 4U, 36-bay server pre-installed with TrueNAS Community Edition




TrueNAS Comminity Edition, built on Digicor server hardware, gives you the freedom to use file, block, or object storage plus container and VM support to scale according to your needs.

Features include snapshots, replication, and RAID-Z, providing a highly reliable and versatile storage solution.

TrueNAS Community Edition gives you the freedom to use file, block, or object storage plus container and VM support to scale according to your needs.

Software support is provided through the TrueNAS Community Forums.




Key Features



  • 36x 3.5" bays can accommodate high capacity SATA HDDs, faster performance SATA SSDs, or a mix of both.

  • Single AMD EPYC 9004 series processor with 16, 24 or 36 cores, supporting VMs, apps and containers.

  • 128GB - 384GB DDR5 ECC RDIMM.

  • Option for up to 2x SATA SSDs for caching to improve HDD performance.

  • Dual 10Gb RJ-45 ports onboard, and options for additional networking connections.

  • Scale-up storage through the connection of additional JBOD storage enclosures.

  • Dedicated remote management port for out-of-band management of system.

  • TrueNAS Community Edition software preinstalled.























                    Brand
                    DiGiCOR




                    Application
                    TrueNAS




                    Form Factor
                    Compact Tower




                    Total Power (W)
                    350




                    Number of Nodes per System
                    1




                    Motherboard Form Factor
                    Mini-ITX




                    Platform
                    Intel Xeon E-2400 series Processors




                    CPU Sockets
                    Single




                    Drive Form Factor
                    2.5 in, 3.5 in




                    Drive Interface Technology
                    SATA




                    Number of Drive Bays
                    4




                    Memory Generation
                    DDR5




                    Number of Memory Slots Available
                    2




                    Maximum RAM Capacity (GB)
                    64




                    PCIe Generation
                    PCIe 5.0




                    Max Network Throughput (Gb/s)
                    1Gb/s




                    Number of Onboard Networking Ports
                    2
